Portable USB Logic Analyzer Device Set with Cables 24M 8 Channel Microcontroller Debug Analyzing Tools Support 1.1.16 Buffer
Feature:
8-channel input, there is a channel identification corresponding to the interface on the box label. When you use it, just point to the sticker on the box, and which cable to connect can also effectively prevent the use of non-professional cables.
One logic pen instruction: Use a small light to indicate the level of CH1, which is intuitive and clear.
Input characteristics: The capacitive reactance is 5PF, and the impedance is 100K ohms. This is a relatively reasonable impedance that we have used after weighing, and it is only the mainstream parameter.
VIH (input can recognize high level): higher than 1.6V is recognized as high level. It can be used to stably collect signals at 5V, 3.3V, 2.5V, 2.0V level. It can also work in 1.8V level systems, but it is not very recommended.
The data is uploaded in real time, the upper computer adopts compressed storage, and the maximum collection depth is 10T, which far exceeds the actual demand!
Perfect support for various trigger modes, rising edge, falling edge, high-level trigger, low-level trigger, and a combination of the above four basic methods to form a complex trigger!
The sampling speed record can be set to: 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
Software download address: http://www.saleae.com/downloads
Download link of product information network disk: http://pan.baidu.com/s/1pJyuIIv
If the official website cannot be opened, Baidu network disk address: http://pan.baidu.com/share/link?shareid=2450752681 uk=1311236932
User manual download address: http://www.kingst.org/forum/viewthread_thread,211
Specification:
Material: Electronic components
Size: 50x28x14mm/1.97x1.1x0.55in
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

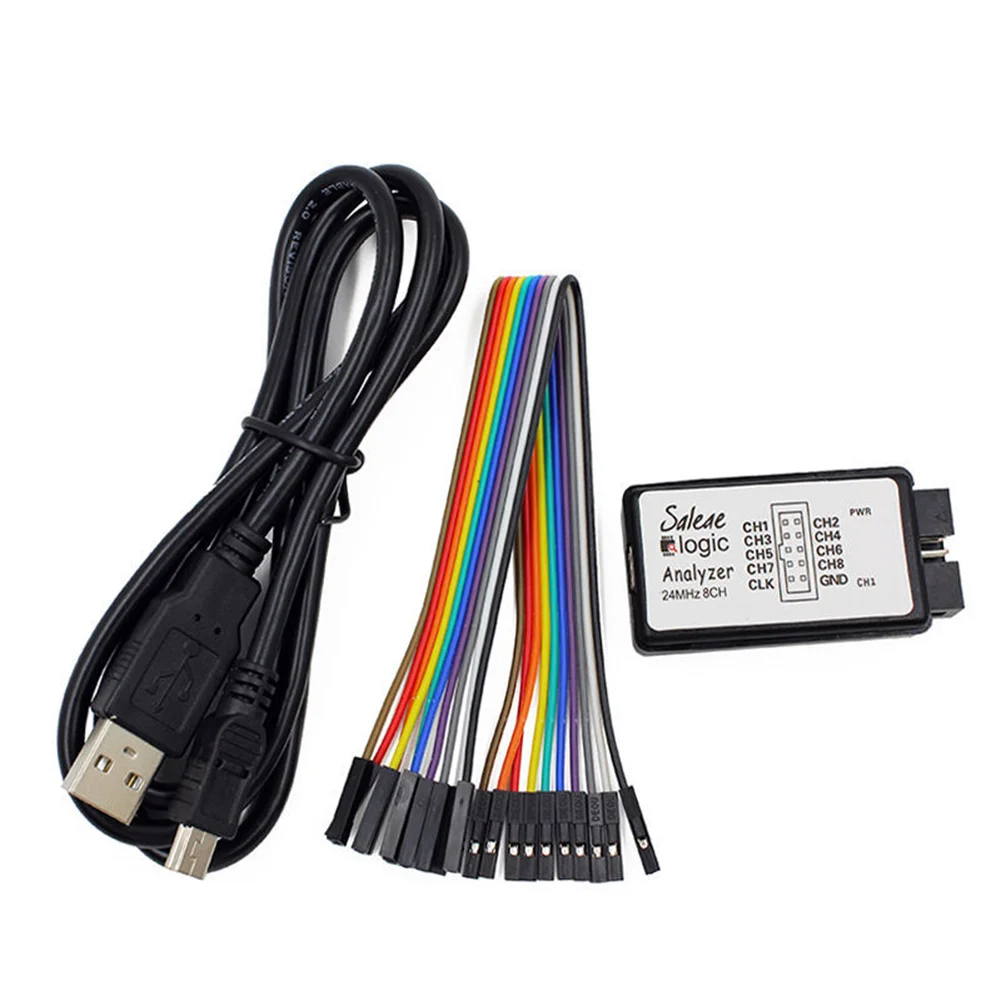

Package Content:
1 X 24M 8CH Logic Analyzer Host
10 X Color Dupont Line (10 different colors)
1 X High quality USB-MINI Cable(for NOKIA dedicated cable)
