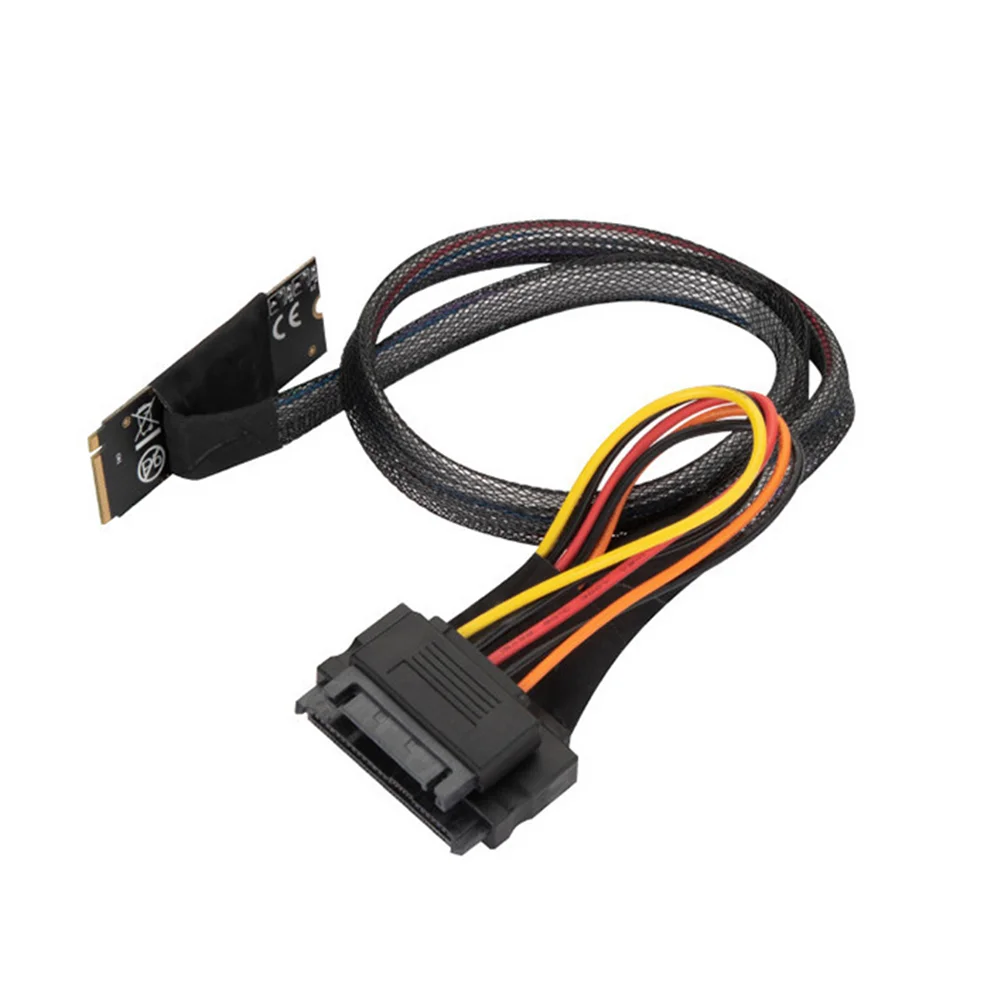

M2TO8639 M.2 M-Key to U.2 SFF-8639 Adapter Cable for 2.5 inch NVMe SSD

M2TO8639 M.2 M-Key to U.2 SFF-8639 Interface Adapter Cable with SATA 15-Pin Female Connector for 2.5 inch NVMe SSD Hard Disk M2 to U.2 Cable
Feature:
1. This M.2 to U.2 adapter card can convert the M.2 interface on the motherboard into a standard U.2 (SFF-8639) interface, and supply power through the 15 pin SATA power interface, which can ensure fast and stable data transmission . Drive-free, plug and play.
2.U.2 SFF-8639 interface: users do not need an external U.2 (SFF-8639) data cable, provide 1 U.2 (SFF-8639) interface, which can connect to high-performance 2.5" NVMe U.2 (SFF -8639) SSD solid state drive, and various devices with U.2 (SFF-8639 interface. Its theoretical bandwidth can reach 32Gbps.
3. M2 (M-key) interface: M.2 (PCI-EGenx4) channel interface is adopted, and its theoretical bandwidth can reach 32Gbps. Users only need to insert the M.2 to U.2 adapter card into the M.2 (M-key) slot of the motherboard, and connect the other end to the NVMeU.2 (SFF-8639) SSD solid state drive to achieve high-performance data transmission.
4. Save motherboard space: A. Provide larger storage capacity for the host. B. The NVMe U.2 SSD solid state drive can be placed anywhere in the chassis.
Note: M.2PCle SSD and M2SATASSD use the same type of connector. This adapter will only work on M.2 connectors designed for M.2 PCle SSDs.
5. System requirements: for Windows/UEFI2.3.1 or higher.

Specification:
Number of branch connectors: 1 to 2
Line length: 0.5 meters
Data transfer speed: 32 (MB/s)
Product weight: 50g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2mm measuring deviation due to manual measurement.

Package Content:
1*M.2 M-key to U.2 (SFF-8639) cable with 15-pin SATA female connector
