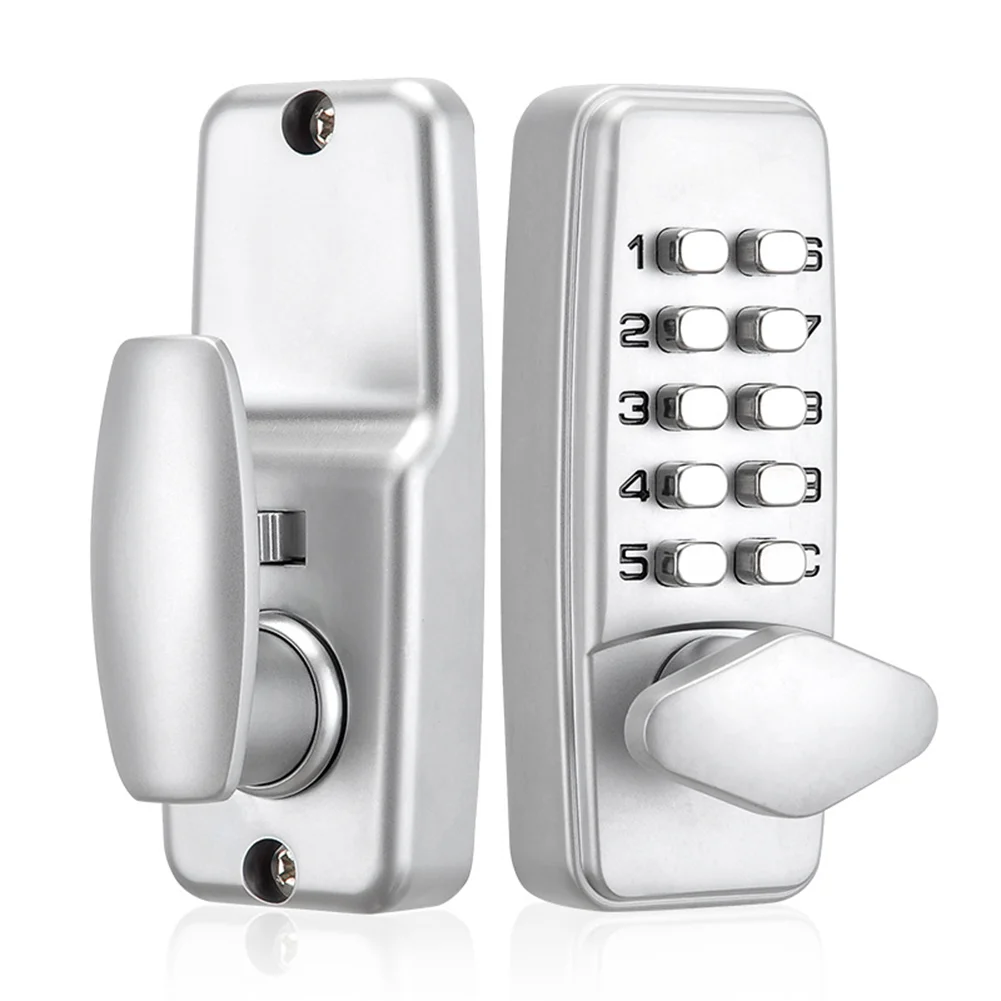

Specification:
Certification: CE
Origin: Mainland China
Model Number: Password Lock
Ways To Unlock: Password
Included Components: Lock
Handle Direction: Direction Reversible
Panel material: zinc alloy
Lock body material: stainless steel
Lock cylinder material: copper panel
Color: silver
Applicable door thickness: 30-65MM/1.18*2.56inch
Applicable type: indoor/outdoor door
Applicable environment: indoor/outdoor normal temperature
Panel size: 42 * 107 * 44MM/1.65*4.21*1.73inch
Lock body size: center distance 60MM/2.36inch
Lining plate size: 25 * 56MM/0.98*2.2inch
Power supply: no power
Function: password unlocking
Features: password unlocking, 34-digit non-sequential password, waterproof
Matters Needing Attention:
After the password is entered, the door can be opened by rotating the handle. The process of rotating the handle is also the process of resetting the internal password chip of the door lock, so the door is locked when it is closed. Press the C key (reset key) once before opening the door each time to prevent the button from being pressed.
When entering a password in garbled code. You cannot enter non-password numbers.
Installation requirements:
This door lock is suitable for door thickness between 30-60 mm. If you need to extend the lock rod, please contact customer service.
The appropriate password needs to be set before the installation of the first generation password lock, and cannot be set after installation.
This door lock cannot directly replace the ball lock, and a screw hole needs to be opened on the original door.
The handle can be interchanged from left to right, and there is no problem with the door opening direction.
Wooden doors without holes can be installed normally.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Password Lock
