Specification:
Origin: Mainland China
Certification: CE
DIY Supplies: ELECTRICAL
Display Type: Digital Only
Basic functions Measuring range Basic accuracy
Output voltage 250V/500V/1000V ±10%
Test current 250V (R=250kΩ) 1mA ±10%
500V(R=500kΩ)1mA ±10%
1000V(R=1MΩ)1mA ±10%
Insulation resistance 250V:0.1MΩ-20MΩ ± (4% ± 2)
500V:0.1MΩ-50MΩ ± (4% ± 2)
1000V:0.1MΩ-100MΩ ± (4% ± 2)
250V:20MΩ-500MΩ ± (4% ± 2)
500V:50MΩ-1000MΩ ± (4% ± 2)
1000V:100MΩ-2000MΩ ± (4% ± 2)
Short circuit current <1.6mA
Median resistance 250V/500V: 2MΩ
1000V:5MΩ
ACV 750V ± (1% + 6)
Color: red, green (optional)
Shell material: ABS plastic
Power supply: 8*AA batteries (not included)
Maximum display: 1999 counts
Product size: about 165.00x120.00x57.00mm
Product size: 6.5x4.72x2.24inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 X Digital Megger
2 X Test Leads
2 X Alligator Clips
1 X User Manual
1 X Packaging Box

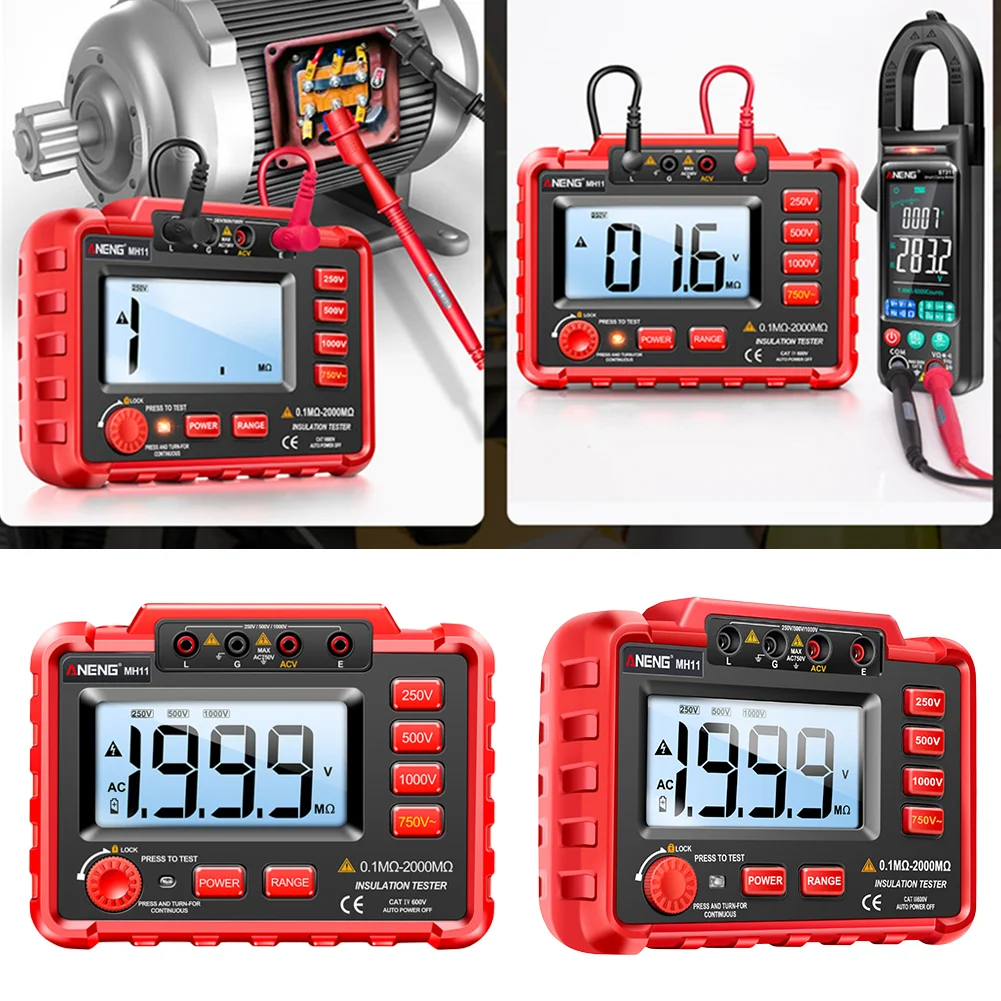

Selling point contentMH11 Digital Megohmmeter Electronic Megameters 2000 Counts Insulation Resistance Testers Backlight Display Cable Megohm High Voltage Meters
Feature:
1. High-Efficiency Voltage Conversion: The digital megohmmeter features a low-loss, high-ratio inductance energy storage DC voltage converter, capable of transforming 12V voltage into 250V/500V/1000V DC voltages. This allows for versatile insulation testing across a wide range of voltages, ensuring comprehensive coverage for your testing needs.
2. Precision Resistance Measurement: Utilizing a digital LCR bridge for resistance measurement and insulation resistance testing, the electronic megameters offer lightweight, wide measurement range capabilities. The added convenience of a backlight display and test lock function enhances usability and reliability in various testing environments.
3. Advanced Design Stable Performance: The insulation resistance testers boast an advanced design that not only looks professional but also provides stable performance for energy measurement tasks. This ensures consistent and accurate results in all your insulation testing projects.
4. User-Friendly and Hands-Free Operation: Designed with a shoulder strap for ease of use, the cable megohm high voltage meters enable hands-free operation, allowing users to conduct tests conveniently and efficiently, even in challenging or confined spaces.
5. Broad Application Spectrum: With their wide application range, the ohm megohm meter is ideal for insulation resistance testing in motors, cables, electromechanical equipment, communication equipment, and power facilities. This versatility makes them an essential tool for professionals working in various electrical and electronic fields.
