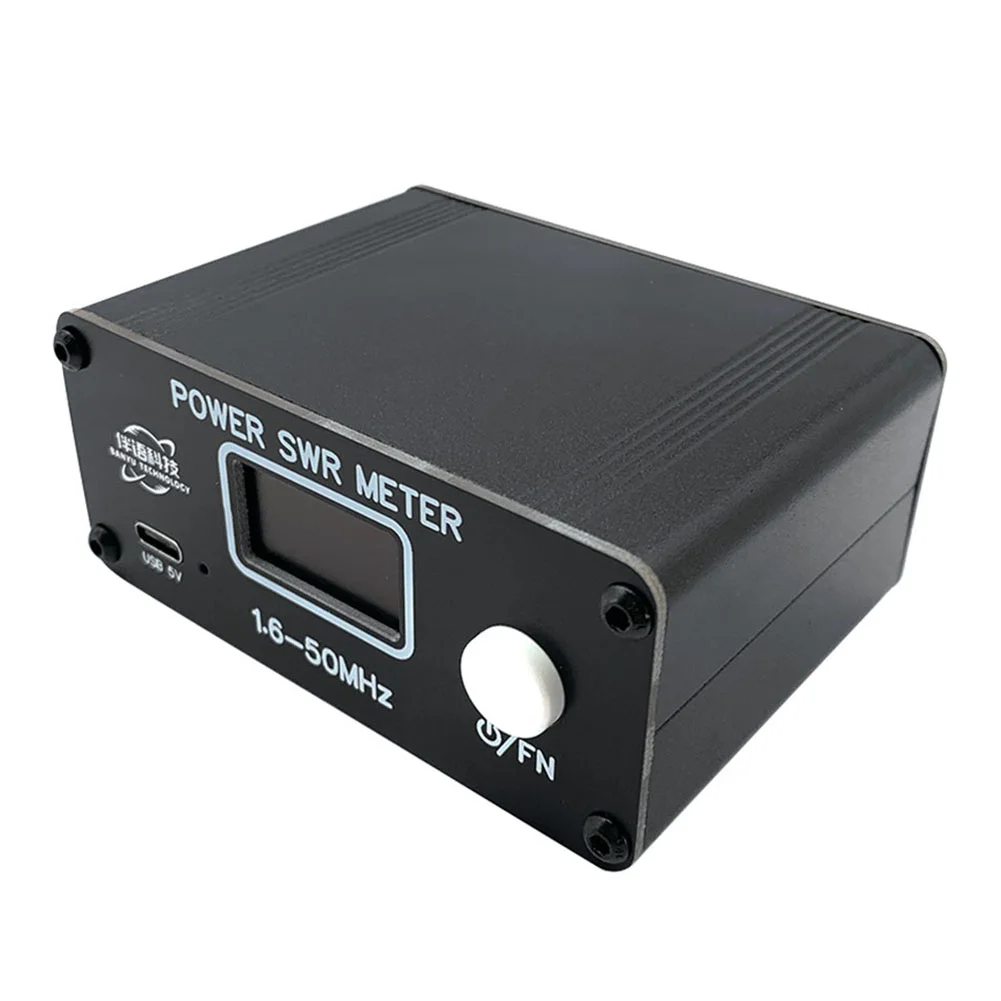

Mini High Frequency SWR Meter HF Digital Display Shortwave Power Meter 0.5W-150W

Specification:
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Model Number: Display Power Standing Wave Meter
Color: Black
Frequency range: 1.6-50MHz
Power measurement range: 0.5W-150W
Standing wave measurement range: 1.0-99.9
Insertion loss: <0.12dB
Insert standing wave: 1.6-30MHz≤1.02; 30-50MHz≤1.05
Measurement accuracy: better than ±5%
Impedance: 50Ω
Standing wave alarm: ≥2.0 (with shutdown function)
RF interface type: SL16-M or N (default M)
Display content: forward power; standing wave; antenna end power; efficiency
Power supply: built-in 3.7V/1000mAh rechargeable lithium battery or USB type-c
Shutdown power consumption: <0.1uA
Screen size: 0.96 inches
Screen type: OLED
Data communication: USB type-c
Firmware upgrade: support
Machine size: 88mmx64mmx38mm/3.46x2.51x1.49inch (excluding the protruding part)
Special reminder: It is recommended not to exceed 110W for continuous transmission in FM or AM mode; SSB or CW can work under 200W power for a long time; exceeding 500W will damage the detection components

Instructions for use:
Long press to switch the machine, short press to switch the display interface, double click to switch the standing wave alarm;
There are a total of 5 display interfaces, which are automatically saved and automatically recalled at the next startup.
Charging red light display, fully charged light off

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package Content:
1 x Power Standing Wave Meter
