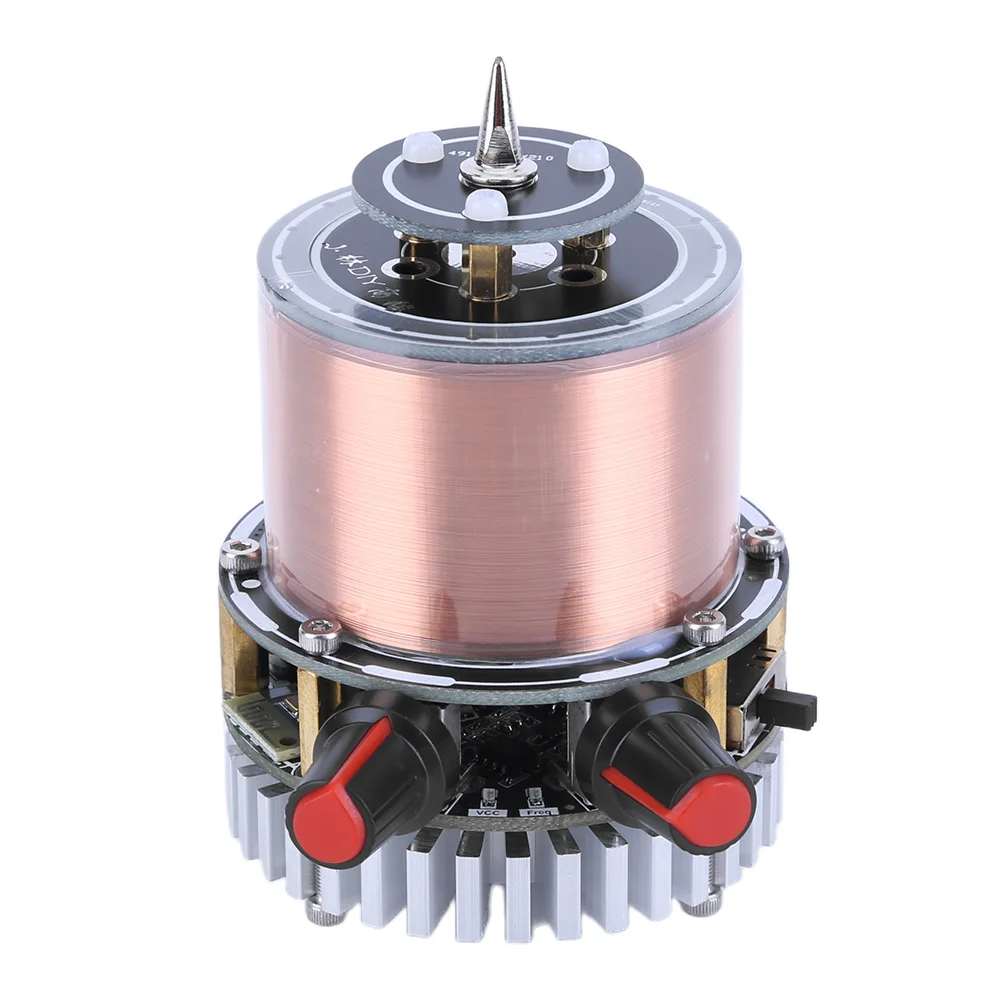

Specification:
Origin: Mainland China
Type: SSTC(Solid State for Tesla Coil)
Playable music format: can only play square wave music
Audio input: Bluetooth-Compatible connection to mobile phone (mobile phone searching for Bluetooth-Compatible device M18)
Arc length: approximately 30-70mm/1.2-2.8inch
(Actually, it may be shorter or longer)
Power: 0-100W
Material: Metal
Product size: approximately 87x62mm/3.42x2.44inch
Temperature control rule: When the temperature of the heat sink exceeds 65 degrees Celsius, the drive power will be disconnected, indicating that the lower red LED light is off. At this time, please turn the switch to the middle gear and let the coil sit for the temperature to decrease. The red light will light up and work normally (reset temperature 42-45 degrees Celsius, please use in an environment not higher than this temperature)
matters needing attention:
1. Due to the high frequency, the heat generated by MOSFETs will be relatively high. Please pay attention to the temperature of the radiator when using it to avoid damaging components due to excessive temperature (mainly in music mode).
2. During use, do not place explosive materials within a range of 5m/16.4ft.
3. Due to severe interference with metals. Please do not approach the coils of electronic devices such as mobile phones and computers to avoid damage.
4. Due to the very small diameter of the secondary coil, try not to bump it to avoid damage to the secondary coil winding
5. Do not modify the equipment without permission to avoid accidents.
6. It shall not be used illegally.
7. We strongly recommend electronic knowledge.
8. For viewing only, please do not open it yourself if you do not know how to use it.
Warning:
1. Please stay away from those who have implanted pacemakers and other life support electronic devices (within a range of 10 meters/32.8 feet)! As the solid state for Tesla coil works in a strong magnetic field and electric field, it will induce current on surrounding metal objects, including wires, cables and nearby electronic equipment, and generate strong electromagnetic radiation. Therefore, if there are implanted or non implanted electronic medical device carriers around, electrification experiments may cause these devices to malfunction and pose a life-threatening risk!
2. The voltage of the solid-state
forTesla coil control and power output components is higher than the safety voltage, and it is forbidden to directly contact the limbs during operation and commissioning.
3. There is a large capacity energy storage device in the solid-state
for Tesla coil, which still has fatal voltage after power failure. When debugging, the charge in the energy storage device should be released first. After installing the discharge element, wait for a few minutes before debugging. It is prohibited to manually short circuit discharge, otherwise it will damage the energy storage device.
4. Solid
for Tesla coil will produce a lot of ozone during discharge, so ensure good ventilation in the experimental site. If you do not follow the regulations or engage in illegal activities, all consequences will be borne by yourself!
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Music for Tesla Coil
