Specification:
Origin: Mainland China

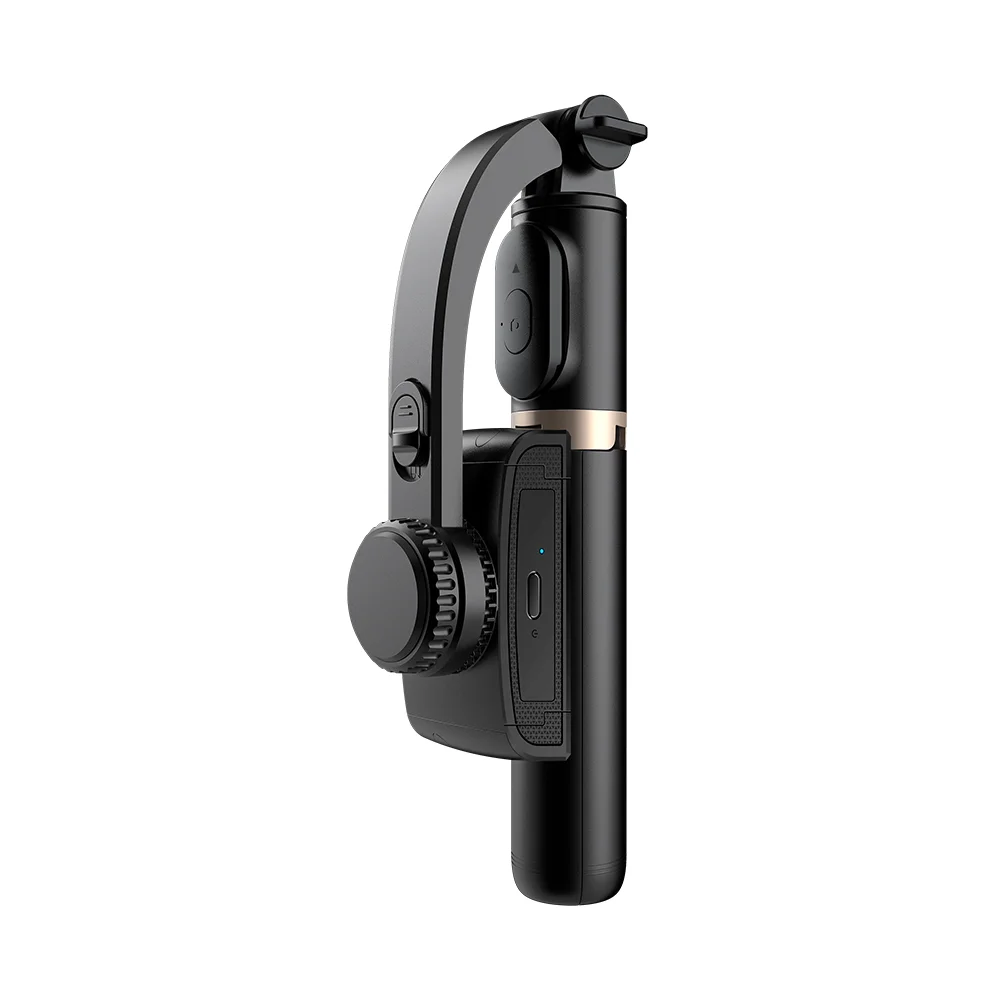

Type: handheld gimbal
Hardware parameters (Selfie Stick)
Bluetooth-Compatible version: Bluetooth-compatible 4.0
Bluetooth-Compatible transmission distance: 10M
Self timer battery: CR1632 (CAN CHANGE)
Android system: Android version 4.3 or above
IOS system: iOS 5.1 or above
Hardware parameters (stabilizer)
Color: black
Material: ABS+aluminum alloy
Phone size: 60-95mm/2.36-3.7in
Equipment battery: 450mah polymer
Working voltage: 3.7V
Working current: about 400mA (during balance adjustment)
Power consumption: 1.4W
Maximum control speed: 100 degrees/second
Working time: about 2 hours
Charging voltage: DC5V
Charging current: 450mA
Charging port: Micro USB
Rotation angle: 90 degrees/time (automatic/manual)
Standby current: less than 100UA
Product size: 70 x 40 x 195~750 mm/2.75x1.57x7.7-29.5in
Equipment weight: net weight 200g
How to use:
1. Power on: long press the camera key for 3 seconds to power on.
2. Bluetooth-Compatible pairing: The indicator flashes for 4 seconds to enter the pairing status. The blue indicator of pairing status flashes. Use the mobile phone to search for "Gimbal Selfe" to match. After the pairing is successful, the blue indicator will go out.
3. Take a picture: When the self timer is connected to the mobile phone, press the take picture button briefly, and the blue light flashes.
4. No pairing: After starting the machine, the machine will automatically shut down after 5 minutes without operation in the state of no pairing connection.
5. Pairing: After starting up, when the self timer is connected to the mobile phone, it will enter the sleep state if there is no operation for 10 minutes, and it will automatically shut down if there is no operation for another 10 minutes.
6. Shutdown: In the startup and hibernation states, long press the camera button for 3 seconds to shut down, and the indicator will flash and go out.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Handheld Stabilizer
