Specification:
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Band Width: Less than 60MHz
Display Size: 3.0 - 4.9 Inches
Model Number: Digital Oscilloscope
Sampling rate: 50M/1CH
Number of channels: 2
Analog bandwidth: 10MSa/S (1 CH)
Actual bandwidth: 2MSa/S (1 CH)
Measuring voltage: X1 (±40V), X10 (±400V)
Input impedance: 1MΩ
Storage depth: 20KB
Parameter display: 12 kinds
Current measurement: 0-6A
Minimum accuracy: 2mA
Current sampling rate: 2.4KSa/S
Display: 3.2inch LCD, 320*240 resolution
Charging voltage: 5V
Battery capacity: 2500mAh
Continuous working time: 4.5-6H
Product size: about 120.00x66.00x18.50mm (4.72x2.6x0.73inch)
Scope of application: home appliance repair, mobile phone repair, car repair, electronic DIY, etc.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Digital Oscilloscope

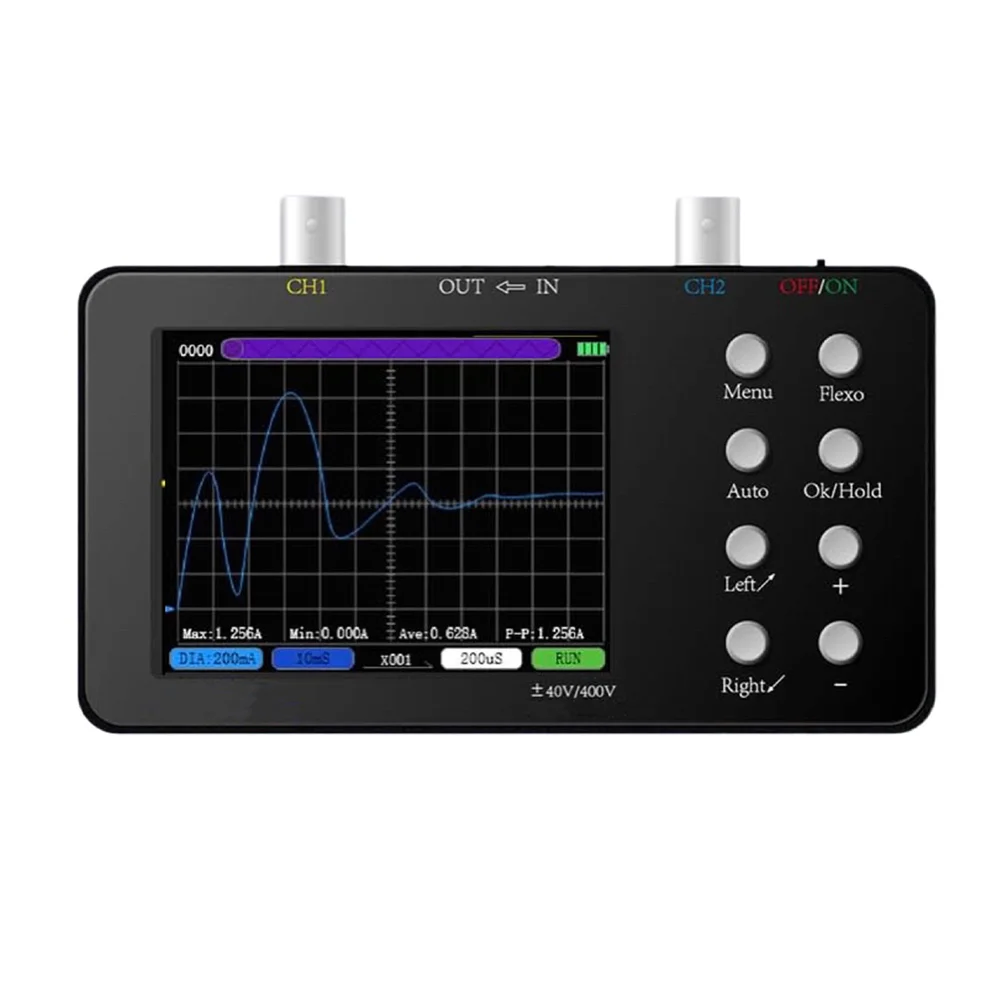

Selling point contentSCO2 Handheld Digital Oscilloscope 50M Sampling Rate Dual Channel 10MSa/S Analog Bandwidth One Key AUTO 3.2inch LCD 20KB Memory Depth Single/Normal/Auto Trigger
Feature:
1. High Performance: This digital oscilloscope boasts a 50M sampling rate, allowing for accurate signal measurements and analysis. With an actual bandwidth of 2MHz and analog bandwidth of 10MHz, it can capture and display a wide range of signals. The complete triggering functions, including single, normal, and automatic modes, provide flexibility for different measurement scenarios. Whether you need to analyze periodic analog signals or non-periodic digital signals, this oscilloscope has got you covered.
2. Wide Voltage Measurement Range: With a maximum voltage measurement capability of ±400V, this handheld digital oscilloscope is capable of handling various voltage levels. From low-level signals to high-voltage measurements, you can trust this device to accurately capture and display waveforms without any distortion or damage to the circuit being tested. It ensures reliable measurements in a wide range of applications.
3. One-Click Auto Function: Say goodbye to tedious adjustments. Thanks to the one-click auto function, displaying the waveform of the tested signal is now effortless. With a simple press of a button, the digital storage oscilloscope automatically adjusts its settings to best fit the input signal, saving you time and effort. It provides instant waveform display, enabling quick analysis and troubleshooting.
4. Extensive Storage Depth: The portable digital oscilloscope offers a generous storage depth of 20K, allowing you to capture and store a large number of waveforms for further analysis. Additionally, it supports waveform compression and expansion, enabling you to zoom in on specific regions of interest or expand compressed waveforms to gain more detailed insights. Particularly useful for current waveforms, it allows you to compress the waveform without losing crucial information, providing a clear visualization of variations and trends.
5. Expandability and Software Support: This storage oscilloscope kit comes with extensive expandability options, allowing you to enhance its functionality by adding compatible modules. These modules can provide additional features such as advanced triggering capabilities, specialized measurements, or even support for different communication protocols. Moreover, the oscilloscope supports PC software, which enables you to update the system and access new features as they become available in the future. The potential inclusion of Fast Fourier Transform (FFT) analysis will further enhance your ability to examine and analyze complex waveforms.
