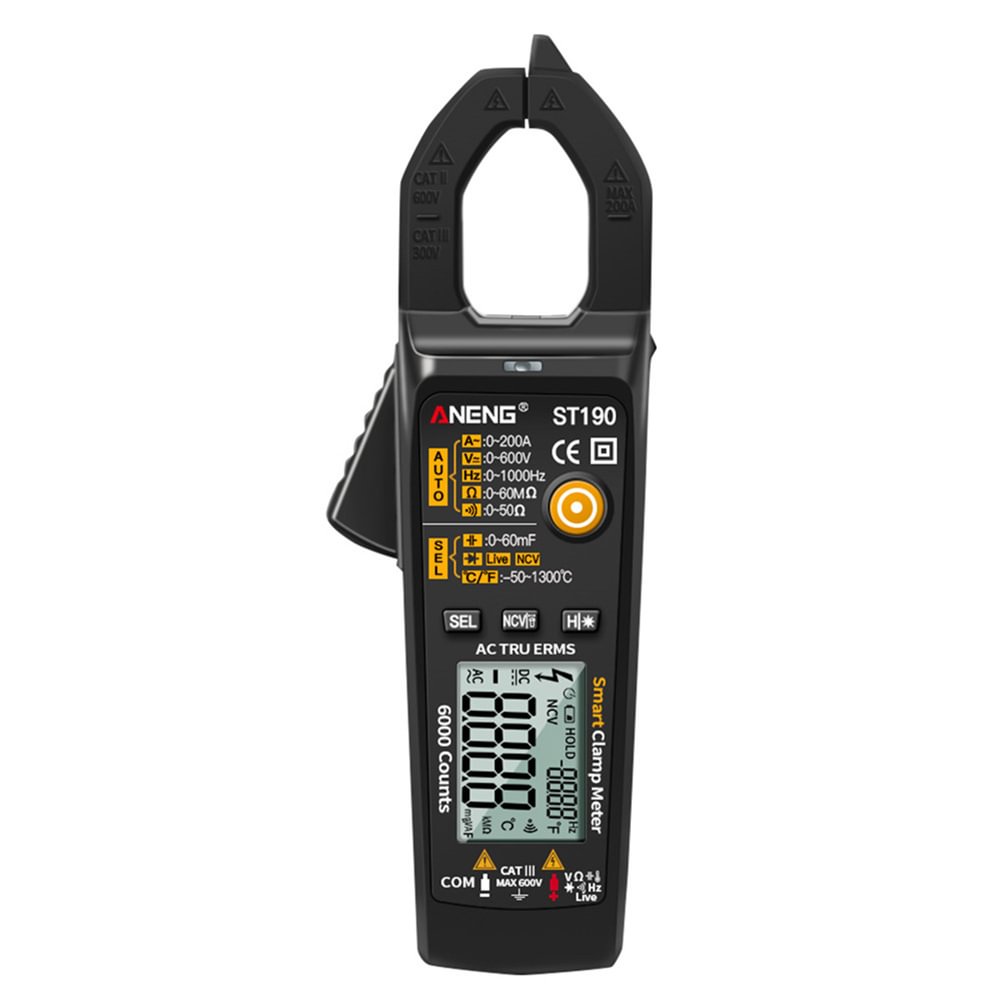

ST190 DC AC Automatic Current Clamp Meter LCD Digital Voltmeter Multimeter

ST190 LCD Digital Automatic Current Clamp Meter DC AC Ammeter Voltage Voltmeter Ohmmeter Multimeter Resistance Ohm Temperature Tester Electrician Tool
Feature:
Automatic selection of measurement function and range.
Full range overload protection.

Specification:
Maximum allowable voltage between the measuring terminal and the ground: 600V DC or 600V AC
Working height: up to 2000m
Display: LCD
Maximum display value: 6000 digits
Sampling time: about 3 times/sec
Unit display: with function, power unit display
Automatic shutdown time: 15 minutes
Power supply: 1.5VAAA battery X 2 (not included)
Temperature coefficient: Less than 01x accuracy/℃
Working temperature: 18℃-28℃
Storage temperature: -10℃-50℃
Product size: 175*39*27mm
Color: Black, Red

AC current
Range Resolution Accuracy
60A 0.01A ± (2.5% reading + 8 digits)
200A 0.1A

DC voltage
Range Resolution Accuracy
6V 0.001V ± (0.5% reading + 3 digits)
60V 0.01V
600V 0.1V

AC voltage
Range Resolution Accuracy
6V 0.001V ± (0.8% reading + 5 digits)
60V 0.01V
600V 0.1V

Resistance
Range Resolution Accuracy
600Ω 0.1Ω ± (0.8% of reading + 3 digits)
6kΩ 0.001kΩ
60kΩ 0.01k
600kΩ 0.1k
6MΩ 0.001MΩ
60MΩ 0.01MΩ

Capacitance
Range Resolution Accuracy
6nF 0.001nF ± (10% reading + 40 digits)
600nF 0.1nF ± (2.5% reading + 20 digits)
6uF 0.001uF
60uF 0.01uF
600uF 0.1uF
6mF 1uF
60mF 0.01mF

Temperature
Range Resolution Accuracy
-50℃ - 1300℃ 1℃ ±(1.0%+3) reading
-58℉ - 2372℉ 1℉ ±(1.0%+3) reading

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package Content:
1 X Clamp Multimeter
2 X Test Lines
1 X Thermocouple
1 X User Manual
1 X Packing Box
