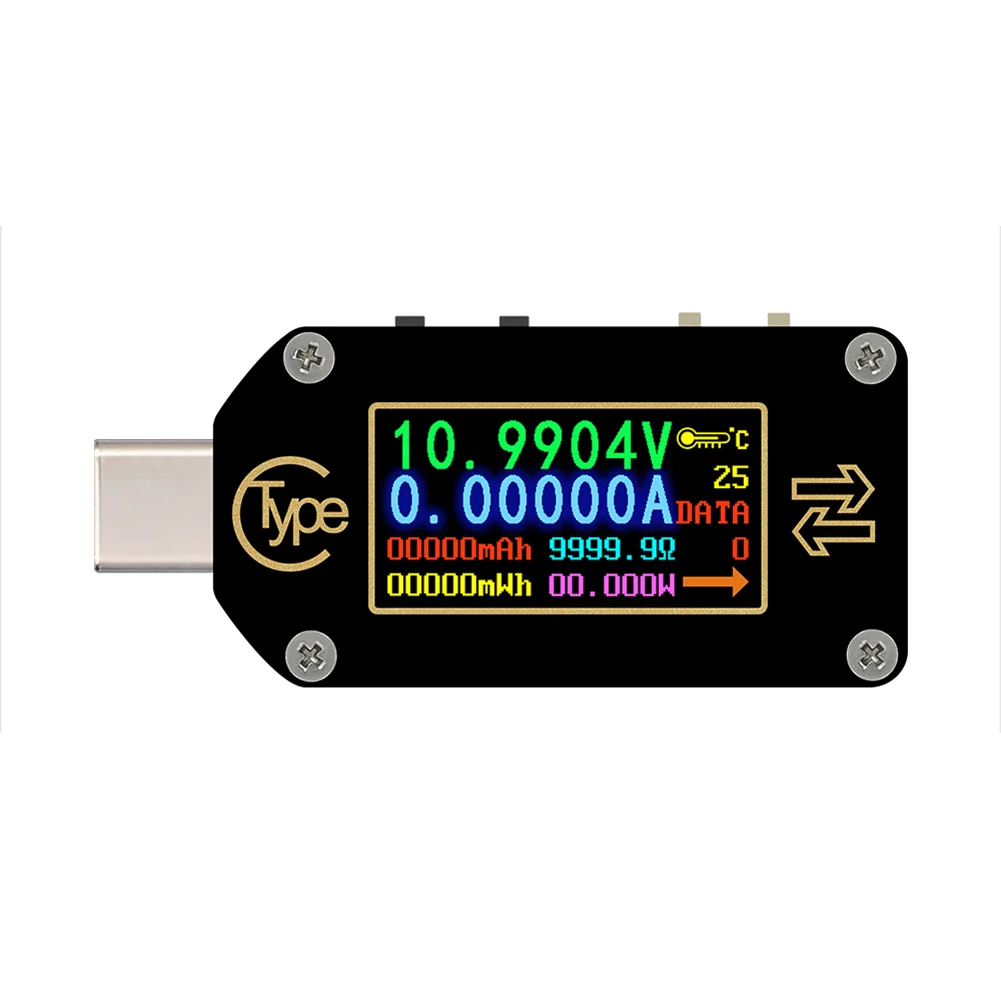

TC66 Fast Charge PD Detector Color Screen USB Tester Voltage Current Meter

TC66 Fast Charge PD Detector Color Screen USB Tester Voltage Current Meter Type-C Multimeter Voltmeter Ammeter
Specification:
Material: ABS
Display screen: 0.96 inch 160*80 resolution color screen
Measuring voltage: 0.005V-30.0000V
Voltage measurement resolution: 0.0001V (0.1mV)
Voltage measurement accuracy: ±(0.5/1000+20 digits)@23℃
Measuring current: 0-5.00000A
Current measurement resolution: 0.00001A (0.01mA)
Current measurement accuracy: ±(1/1000+30 digits)@23℃
Power supply voltage: 3.5-24V
Capacity measurement range: 0-99999mAh
Energy measurement range: 0-99999mWh-999.99Wh
Power measurement range: 0-150W
Load impedance measurement range: 1-9999.9Ω
Data refresh frequency: 2Hz
Temperature measurement range: 0-80℃/32-176℉
Working temperature range: 0-45℃/32-113℉
Size: 49*22*8mm/1.93*0.87*0.31"

Version description:
TC66 (USB communication + hardware PD switch)/TC66C (USBBluetooth-compatiblecommunication + hardware PD switch) is a normal version. The PD hardware switch is added to cut off the connection between the PD chip and the CC line to achieve better compatibility with the load!

Special Note:
1. When the TC66/TC66C male connector is directly soldered to the PCB, please do not pull it to avoid breaking the male connector. If possible, please reinforce it yourself.
2. Be sure to turn off the CC pull-down when measuring and charging, because the CC pull-down mode may maintain high voltage and damage electrical appliances.
3. The product calibration environment is 23℃, and the TC66 heats up for more than 10 minutes. The highest accuracy can be guaranteed at this temperature.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.

Package Content:
1 X USB Tester
