Specification:
Temperature sensor type:
Typical input voltage: 2.7V-5V DC
Interface: Digital
Communication protocol: I2C interface
The maximum temperature resolution is 16 bits (0.0078 ℃ per lsb), with a default of 13 bits (0.0625 ℃ per lsb).
High precision temperature tolerance:
± 0.5 ° C within the range of -40 ° C to+105 ° C (2.7 V to 3.6 V)
± 0.4 ° C within the range of -40 ° C to+105 ° C (3.0 V)
Configurable I2C addresses allow up to four sensors on the I2C bus
Running through I2C, only two shared lines are required
Size: 23.3x16.5x3.2mm/0.91x0.64x0.12inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

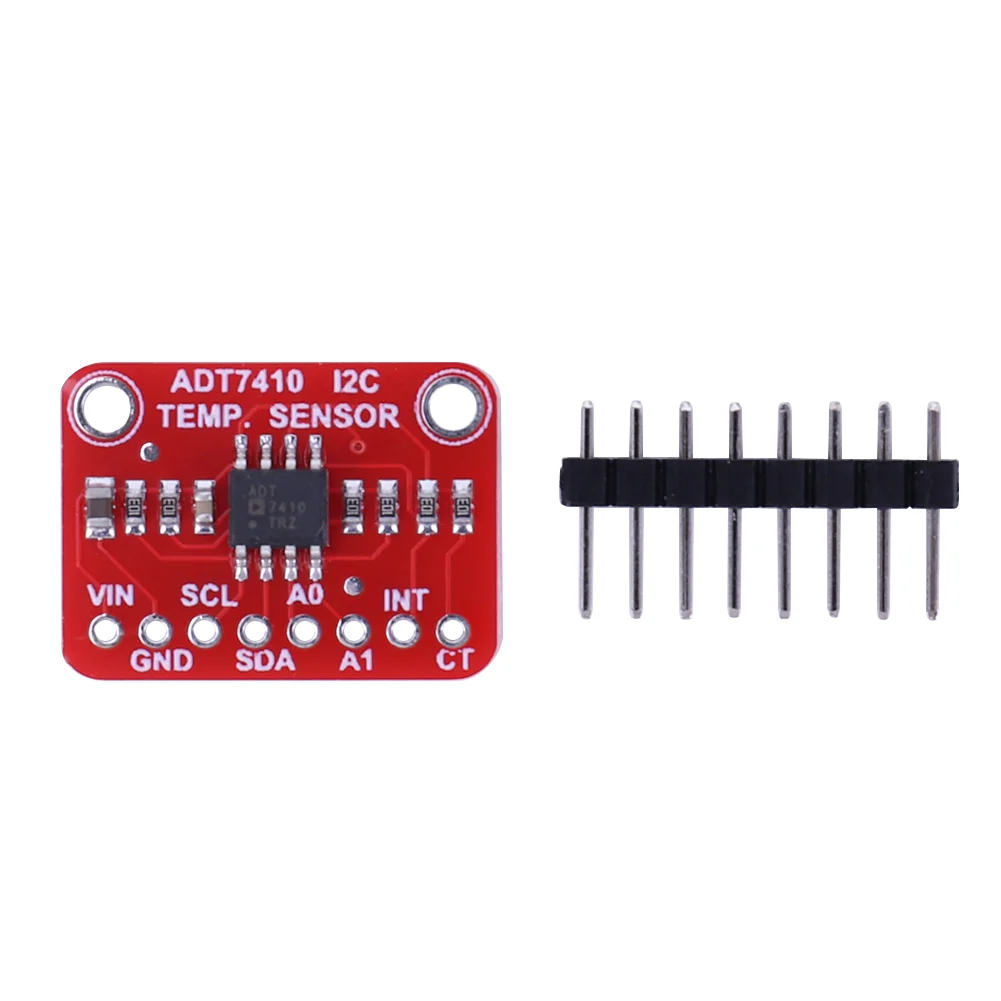

Package Content:1 x Temperature Sensor Development
Board
