Specification:
Origin: Mainland China
DIY Supplies: Plumbing
Principle: Resistive
Wood range: 4~75%
Paper range: 4~90%
Wall range: 0.2~24%
Resolution: 0.1%
Accuracy: ±0.5%
Electrode length: 10mm(0.4")
Electrode needle: integrated
Automatic shutdown: after 5 minutes of no button operation
Power supply: 2 AA batteries
Product material: ABS engineering plastic
Operating temperature: 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit)
Product size: 144*64*31 mm
Product net weight: 108g
Automatic shutdown function: This instrument has an automatic shutdown function. If there is no button operation within 5 minutes, the instrument will automatically cut off the power supply to save battery consumption.
Battery replacement: When the battery low voltage indication is displayed on the meter screen, it indicates that the battery is nearly exhausted and a new battery needs to be replaced immediately: 1. Remove the battery cover on the back of the meter. 2. Replace with 2 new AA batteries. 3. Cover Put on the battery cover
Measurement instructions:
1. Remove the battery cover, install 2 AA dry batteries, and press the power button once to turn on the phone. This product has a blue backlight after it is turned on, which can display clearly when the light is insufficient.
2. Remove the electrode needle cap to expose the electrode needle.
3. Press the "Wood" button to select the appropriate wood calibration scale A, B, C, D (please refer to the wood calibration table at the back of this guide) to measure the corresponding wood.
4. Or press the "Paper" or "Wall" key to select paper mode or wall mode. Paper mode is used to test paper/cardboard/carton. Wall mode is used for testing sheetrock/wall panels/floors.
5. Insert the needle into the material and read the current display data. Press and hold the HOLD/C/F key once to lock the displayed reading.
6. Read the current ambient temperature. Press and hold the HOLD/C/F key for 3 seconds to switch between Celsius and Fahrenheit.
7. Press the power button once to turn off the instrument.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 X Wood Moisture Meter
1 X Instruction Manual

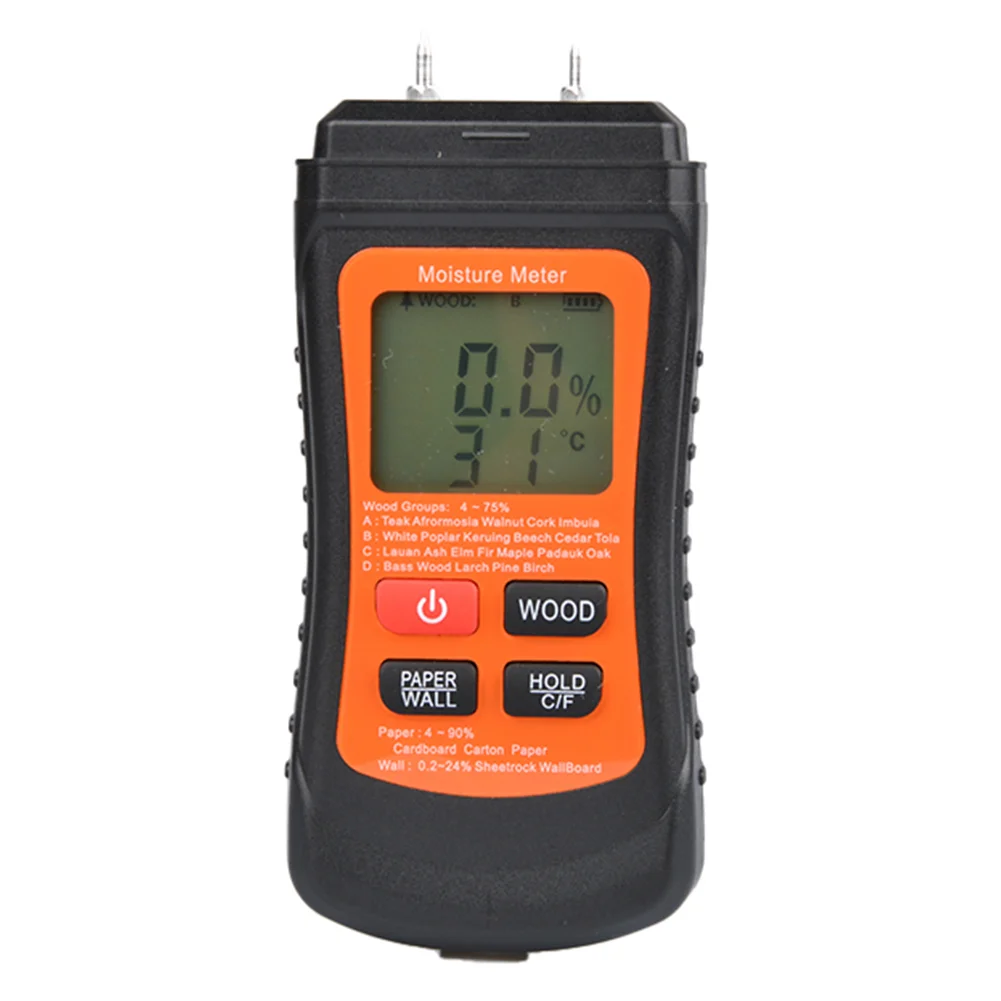

Selling point contentTwo Pins Wood Moisture Meter Backlit Digital Paper Humidity Tester with Temperature Display Timber Damp Detector Wall Hygrometer for Building Materials Wood Wall
Feature:
1. Easy-to-Use Design: The wood moisture meter features a user-friendly interface; simply press the button on the back of the device to securely lock it in place, making moisture measurement hassle-free.
2. Durable Construction: Crafted from high-quality materials, the paper humidity tester is built to last, offering reliability and durability for long-term use in assessing moisture levels in various materials.
3. Compact and Portable: Measuring just 14.4cm in length, 6.4cm in width, and 3.1cm in height, and weighing only 0.108kg, the wall hygrometer timber damp detector is conveniently sized for easy transportation and storage.
4. Automatic Shutdown Feature: Equipped with an auto-off function, the tree moisture tester conserves battery life by automatically powering down after 5 minutes of inactivity, ensuring that your device is ready when you need it without unnecessary power consumption.
5. Enhanced with Temperature Display: Adding to its versatility, this device not only measures moisture levels but also includes a temperature display feature, providing a more comprehensive understanding of your environment's conditions.
