Specification:
Origin: Mainland China
Input voltage of solder pad: DC 3.5V-12.0V
USB input voltage: DC 5.0V
Output voltage: DC 1.2V-24.0V
Output power: 3W (maximum)
Conversion efficiency: 95%
Working temperature range: -20 °~85 °
Working humidity range: 0% -95% RH
Size: About 68x30x22mm/2.67x1.18x0.86inch
Weight: 15g
Matters needing attention:
It is a DC power module and cannot be connected to AC power.
Please do not short-circuit the output.
\'IN-\' and \'OUT-\' cannot be connected together, otherwise the module does not support constant current output.
Please ensure that the input power is greater than the load power.
If the module is very hot, please reduce the output power.
If the output voltage cannot be adjusted, rotate the CV potentiometer counterclockwise for more than 10 turns.
The output current cannot maintain a fixed value output and varies with the load, but the output power cannot exceed 3W.
Please read the user manual and instructions before use.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

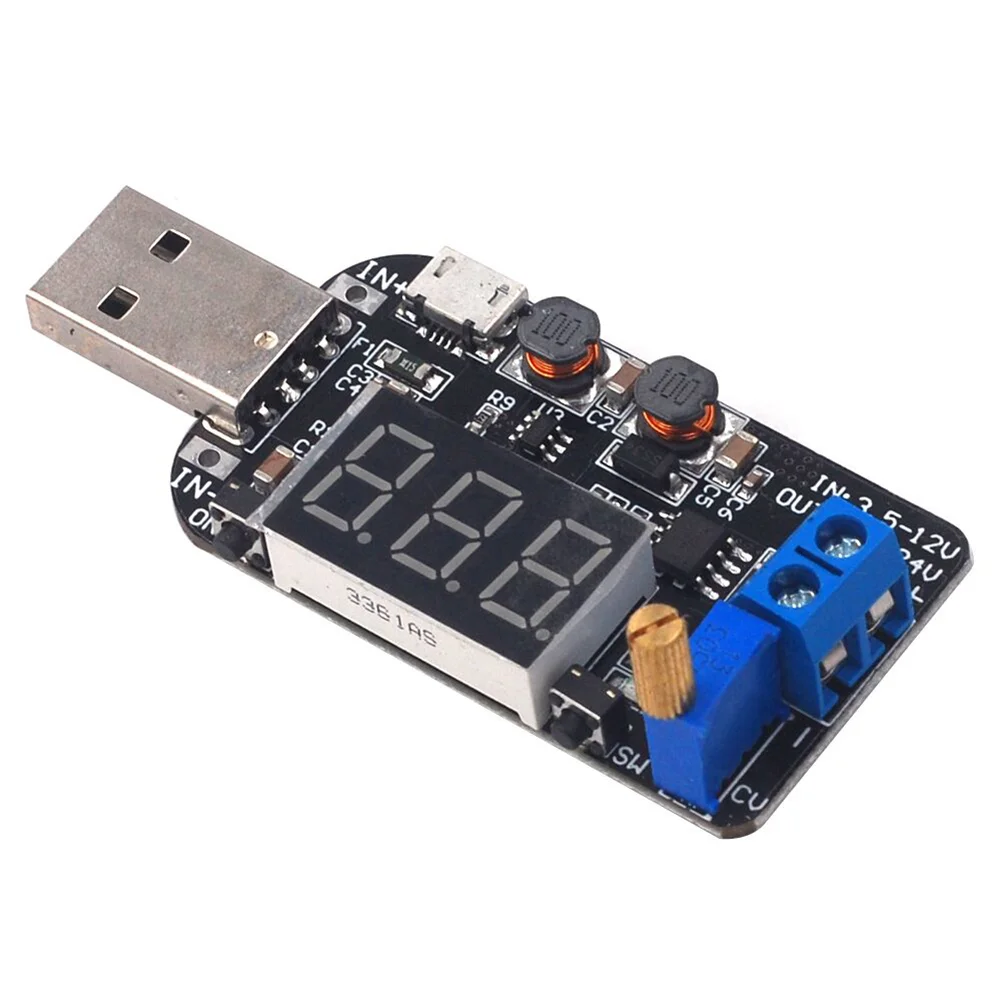

Package Content:1 x Adjustable Buck-Boost Power Supply Module
