Specification:
Origin: Mainland China
Gender: Male-Male
Model Number: Type C to Dual XLR Cable
Connector A: male,XLR
Connector B: male,TYPE-C
Type: Type-C Cables
Hign-concerned Chemical: None
Specifications: 1m, 2m, 3m (optional)
Interface: XLR male*2
USB TYPE-C*1
Audio decoding encoding frequency: DAC 32BIT 384KHZ
Dynamic range DNR@1KHz -60dBFS Typ: 100dB
Distortion THD+N @1KHz 500mVrms Typ: -85dB
Crosstalk suppression Crosstalk@1KHz 0dBFS Typ: -80dB
Sleep current: 1.5-2ma
Standby current: 25-35ma
Working current: 40-50ma
Output adapter impedance: 8-32Ω
Driving voltage: 530-630mv
Frequency response range: 20-20Khz
Distortion: (-90 -80DB
Signal-to-noise ratio: 95-105DB
Dynamic range: 95-105DB
Crosstalk: -90-- -70DB
Packaging size: 200*150*20mm (1 meter), 240*160*20mm (2 meters and 3 meters)
Weight: 100g (1 meter), 130g (2 meters), 150g (3 meters)

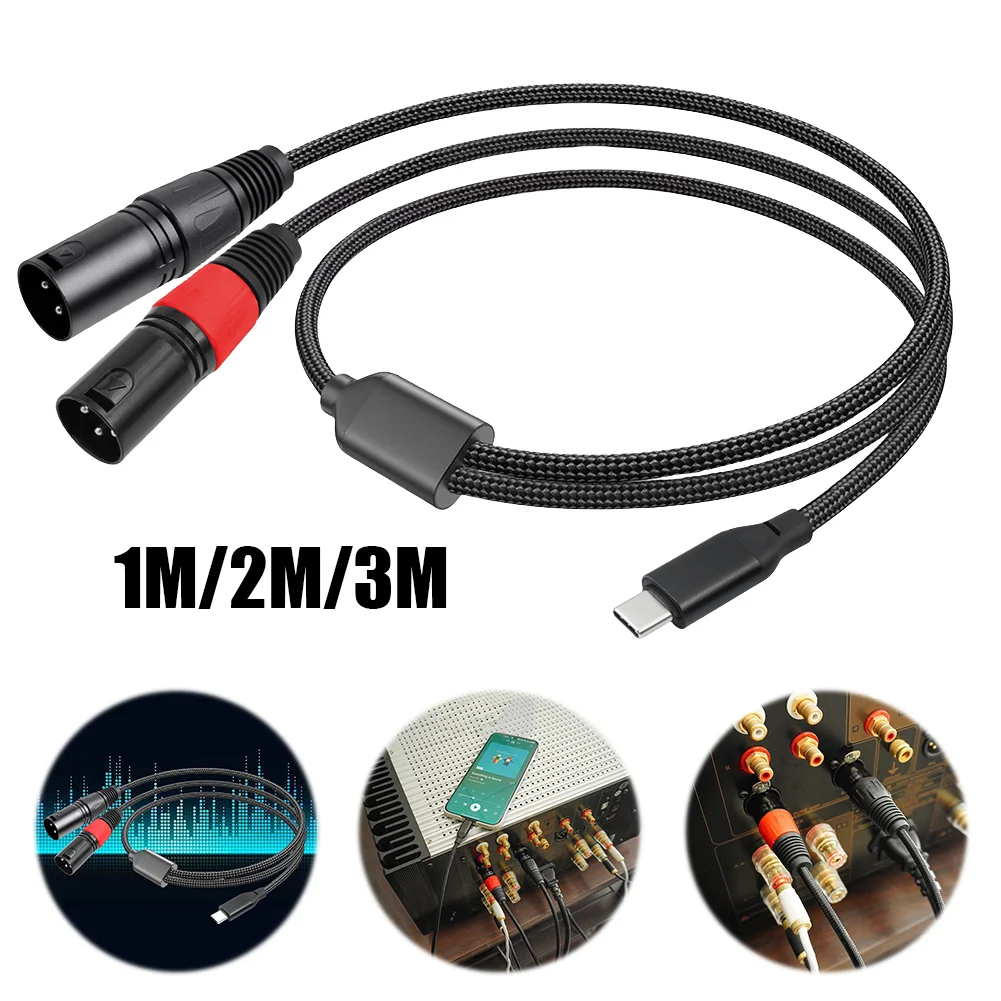

Product use: This USB C to dual-
XLR male audio cable can convert smart devices with TYPE-C interface (mobile phones, notebooks, tablets) into dual-
XLR outputs. The red dual-
XLR interface is the right channel output, and the black is the left channel output. The output end can be connected to the XLR input port of the power amplifier, active speakers, and stage speakers
Note: This product is a one-way conversion, USB TYPE-C can only output signals to XLR. The XLR port can be connected to the XLR input port of the power amplifier, active speakers, stage audio equipment mentioned above, but cannot be connected to a microphone.
This cable adopts a Y-type splitter design, and the splitter is about 50CM away from the XLR plug
1 meter type-c end to the splitter 50CM, splitter to XLR output port 50CM
2 meter type-c end to the splitter 150CM, splitter to XLR output port 50CM
3 meter type-c end to the splitter 250CM, splitter to XLR output port 50CM
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x USB-C to Dual XLR 3Pin Cable
Selling point contentType C To Dual XLR Male Aux Audio Cable Braided USB C To XLR Male Stereo Audio Cable Built in DAC Chipset Type C To XLR Male Output Stereo Cord Compatible with iPad Laptop Phone for Speakers Amplifier Mixer
Feature:
1. Superior Sound Quality: Featuring a 32Bit/384Khz decoding chip, this usb-c to dual xlr 3pin cable offers a higher sampling rate compared to the 16bit or 24bit chips used in similar products. This results in more delicate sound, greater driving force, and a higher signal-to-noise ratio.
2. Optimized for Audio Transmission: The type c to dual xlr male aux audio cable is specifically designed for transmitting digital and analog audio signals, allowing you to output audio from your phone or computer to stereo amplifiers or speakers with stereo input (left and right channel XLR).
3. Built-in DAC Chip: The usb c to xlr male stereo audio cable includes a powerful DAC chip that delivers exceptional audio quality. Enjoy Hi-Fi sound quality, a wide and natural soundstage, and authentic tone with this cable.
4. Wide Compatibility: The usb c to dual xlr audio cable is compatible with USB C-enabled devices, including compatible with MacBook, iPad Pro 2018, Samsung Note 8/9, Galaxy S8/9/10, Surface, Google Pixel 2/2XL/3/3XL, as well as compatible with Chromebooks, Dell, Acer, and more.
5. Enhanced User Experience: Compared to similar products, the type c to xlr male output stereo cord offers a significantly improved overall experience, ensuring superior performance and reliability for all your audio needs.
