USB RF Power Detector 100K-10GHZ Amplitude Measurement Software V5 for Ham Radio

Specification:
Origin: Mainland China
Certification: NONE
Compatible Audio Video Equipment Style: Digital-to-Analog Converter (DAC)
Display Size: 2 - 4
Model Number: USB RF Power Meter
Weight: 77.00 g
Package: Yes
Measuring power range: -60-+0 dBm (of which 0--40dbm has good linearity);
Measurement power resolution: ±0.1 dBm;
The measurement frequency range is: 100K-10GHz (different models have different frequency ranges);
Input impedance: 50Ω;
Dynamic range: 60dB;
Working voltage: 5VDC (powered by TYPE-C line);
Charging current: 100mA
Material: aluminum alloy shell
Size: about 60X30mm/2.36x1.18INCH

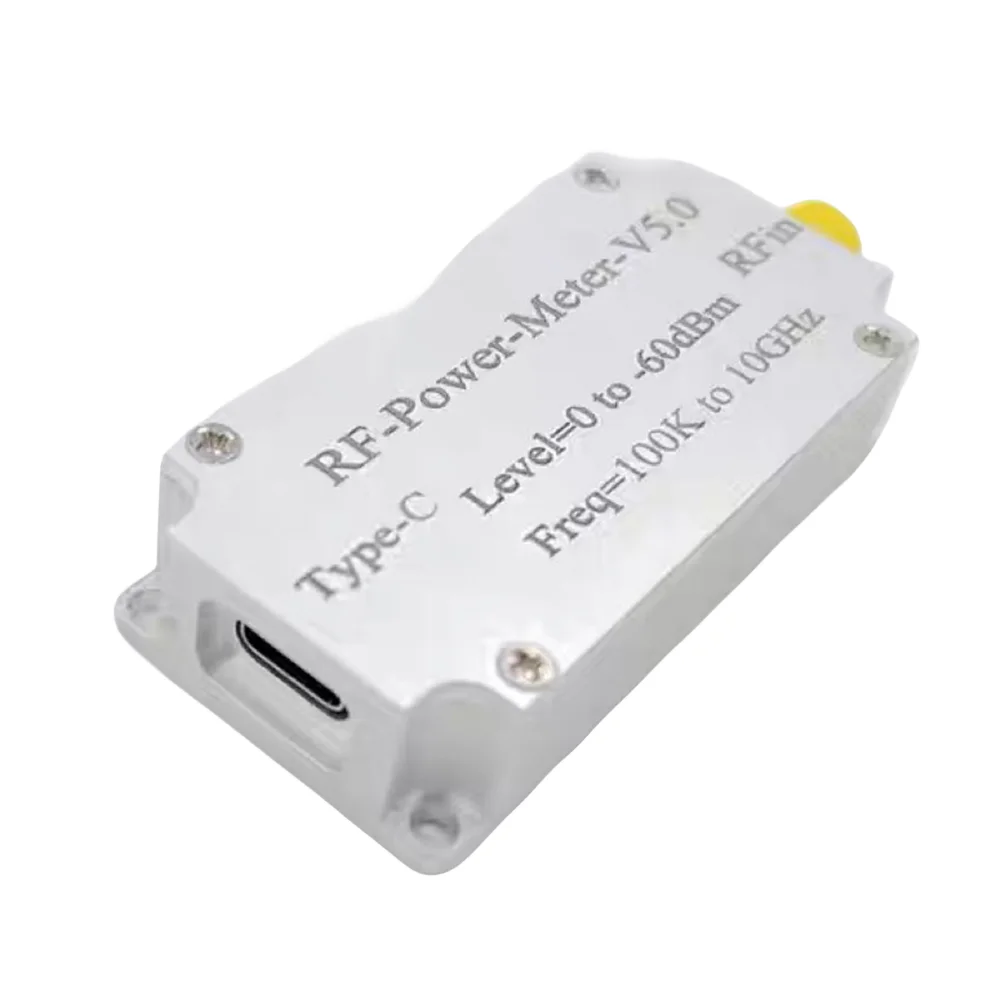

RF-Power-Meter-V5.0 series is a high-performance, low-cost portable USB simple RF power meter. Equipped with 5V power supply and data communication via USB. Easy to use, small size, easy to carry, stable performance, high precision, preset offset, wide dynamic range, fast measurement speed. Software supporting the meter allows the user to configure the meter on a PC and makes data logging and sharing simple
Applications:
Calibration of radio frequency instruments;
Testing and maintenance of radio frequency equipment;
Measure the standing wave ratio of the RF circuit (adding a feedback bridge);
Measure the return loss of the radio frequency circuit;
Interference detection between wireless communication devices;
RSSI (Received Signal Strength Indicator) and transmit power level detection;
Performance evaluation of step attenuators;
Measurement of amplifier gain and network attenuation;
Measurement of forward power and reflected power in directional couplers;
Power measurement of GMSK* modulated GSM signals;

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.





Package Content:
1 x Power Meter
