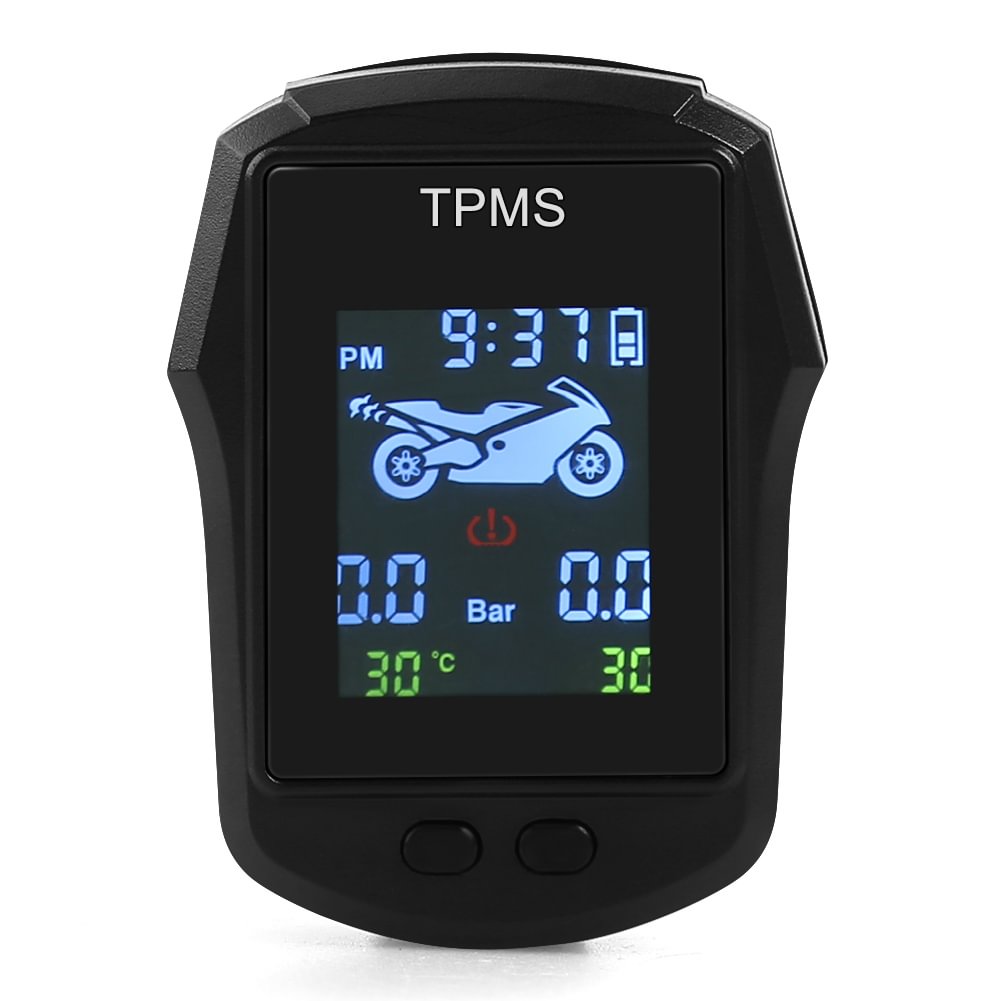

Waterproof Motorcycle TPMS Motorbike Electric Bike Tire Tyre Pressure Monitoring System with External Sensors
1. Clear display strong light;
2. Convenient installation;
3. Replaceable battery;
4. Long service life;
5. All-round waterproof.
Material: ABS + PC
Body color: black
Size: 50 * 50 * 28mm/1.97*1.97*1.10"
Receiver frequency: 433.92MHz
Receiving sensitivity: 110-110dBm
Working temperature range: -20℃~+75℃
Pressure alarm value: 0.3-6.2bar (5-90psi)
Working temperature: -30℃~+80℃
Pressure monitoring range: 0-8bar (116psi)
Pressure accuracy: 0.0.1bar (1.5psi)
Precision temperature sensor: ±3℃
Transmitting power: <10dbm
Transmission frequency: 433.92MHz
Size: 21x17x17mm/0.83x0.66x0.66" (height * diameter)
Battery model: CR1632, replaceable
Battery life: 2 years (1-2 hours per day, normal travel time)
1. Unscrew the 2 screws, put on the motorcycle/electric bike/bicycle and tighten;
2. Place the mounting head of the bracket toward the position you need, and confirm that the bracket is firm;
3. Install the tire pressure receiver on the bracket, tighten and then lock;
4. Move the joints by rotating the tuning knob of the ball head to adjust the appropriate angle appropriately.
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
1 X Receiver
1 X Usb Cable
1 X Bracket
2 X Sensors
1 Set X Parts
1 X Manual
