Specification:
Origin: Mainland China
Accessory Type: Extension Board
Compatible With: Waveshare
Use: Serial level conversion
Product Size:
Type A interface: 44.45 x 19.05mm/1.75 x 0.75inch
Micro interface: 44.81 x 19.05mm/1.76 x 0.75inch
Mini: 46.17 x 19.11mm/1.81 x 0.75inch
Type C connector: 44.45 x 19.05mm/1.75 x 0.75inch
VCClO: Output 3.3V or 5V (module powered by USB, must jump the jumper cap to 3.3V or 5V)
GND: connect to GND
TXD: connect to MCU.RX (signal flow: MCU.RX<
RXD: connect to MCU.TX (signal flow: MCU.TX>>FT232>>PC.RX)
RTS: connect to MCU.CTS (signal flow direction: MCU.CTS<
CTS: connect to MCU.RTS (signal flow direction: MCU.RTS>>FT232>>PC.CTS)
This product does not come with USB cable. The module is USB to TTL level, do not connect directly to the RS232 level, so as not to burn the module.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

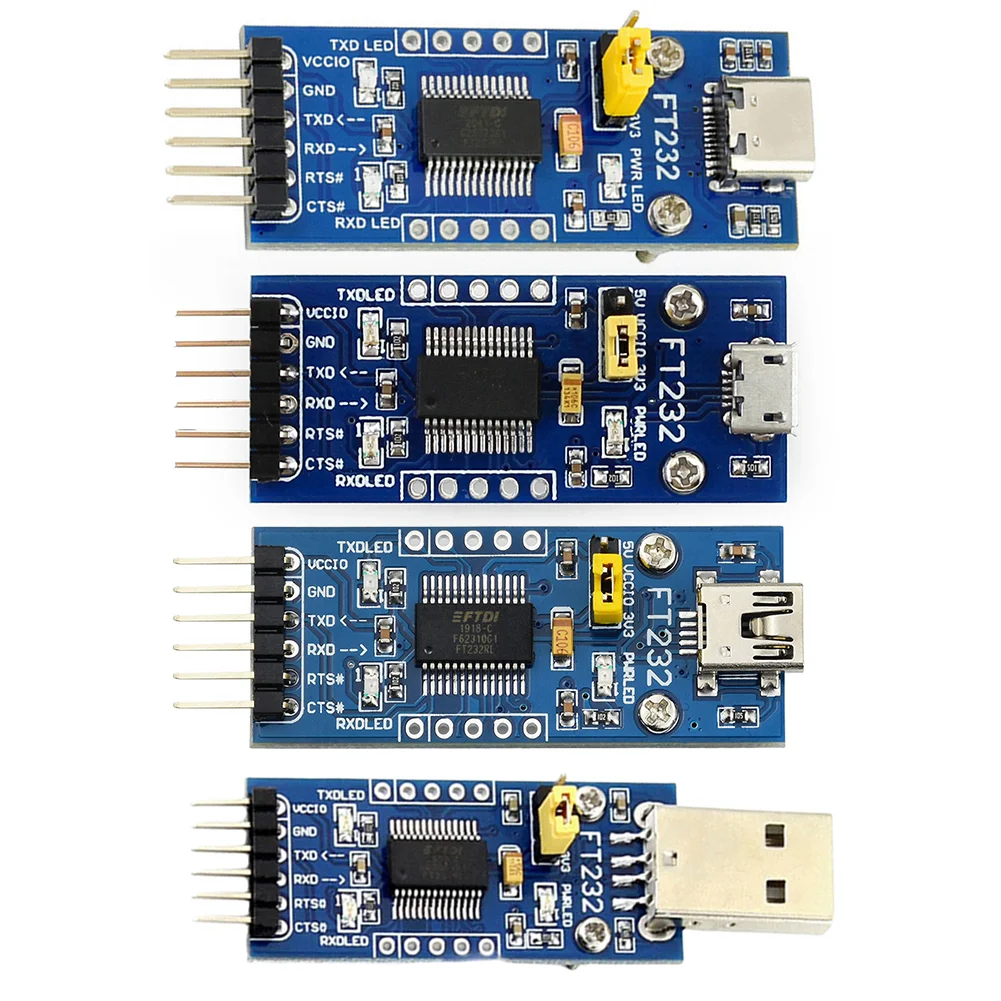

Package Content:1 x FT232 USB UART Board
2pcs x 5PlN pin + 5PIN header
1 x Dupont cable bulk header 6PIN to custom
