Specification:
Certification: CE
Origin: Mainland China
Style: Lavalier Microphone
Use: Interview
Transducer: Condenser Microphone
Set Type: Transmitter Sets
Communication: WireLess
Package: Yes
Polar Patterns: Omnidirectional
Model: J68
Color: black, black and yellow (optional)
Interface: for Apple 8pin+for Android TYPE-C
Transmission protocol: 2.4G private protocol
Transmission distance: ≥20 meters
Headphone monitoring: supported (adapted to TYPE-C interface headphones)
Noise reduction: supports three levels of noise reduction
Reverb: Support
Sound delay: ≤25ms
Microphone: -38dB±3dB omnidirectional condenser microphone
Frequency response: 20Hz-20KHz
Sampling rate: 48KHz
Signal-to-noise ratio: ≥70dB
Working current: ≤12mA
Shutdown current: ≤20uA
Charging time: 1.5h
Single battery life: 6-8h (80ma battery)
Composite battery life: 48h
Charging compartment battery: 300mA/h or 600mA/h
Charging box input voltage: 5V
Adapter: 5V/1A
Charger power digital display: supports 188 power digital display
Working temperature: -10℃-45℃
Compatibility: for Apple 8pin + for Android TYPE-C dual interface
Type-c interface: adaptable to most notebooks, desktops, mobile phones and other ordinary for Android interface devices
8pin interface: supports mobile phones and computers/tablets with for iPhone interface, such as for iPhone 15 14 13, for iPad, for MacBook
Product Size:
Receiver 25X8.5X43.5mm
Transmitter 19X16X45mm
Charging compartment 85X29X62mm
product weight:
Receiver 5.3g
Transmitter 7.3g
Charging box 63.7g
introduce:

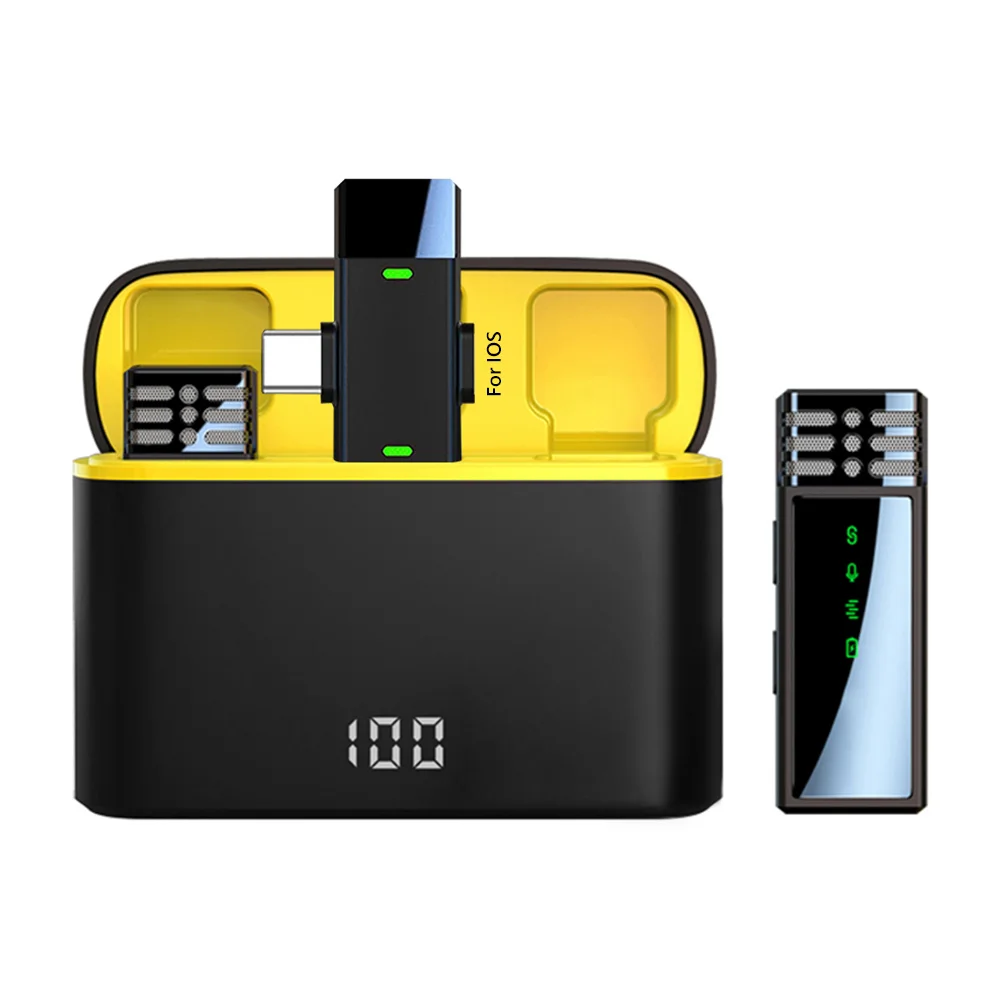

This product is a smart wireless microphone that provides professional-level recording output. Plug and play, no APP required. Multiple uses: It can be used in online live broadcast, video Vlog shooting, program interviews, interview recordings, video teaching and other occasions.
Instructions:
Step 1: Connect one end of the receiving end to the mobile phone interface.
Note: for OPPO/MIVO/1QOO/Realme brand mobile phones must go to the settings (search for \"OTG*-turn on OTG power supply) to be used normally.
Step 2: Press and hold the 3S button K1, or take it out from the compartment. If the connection indicator light flashes green slowly, it means the computer is successfully booted.
Step 3: The indicator lights of the receiver and transmitter are always on. Open the camera, live video and other APPs on your mobile phone to use the microphone to collect sound.
Special Note:
How to use the charging interface of the receiving end is as follows: there is no battery inside the receiving end, so there is no need to charge it during live broadcast. If the mobile phone battery is low during live broadcast, charge the mobile phone directly through the interface of the receiving end.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:2 x Microphone Transmitter
1 x Receiving End ( for Apple 8PIN+ for Android Type-C Dual Interface)
1 x Charging Compartment
1 x Type-C Charging Cable
1 x User Manual
