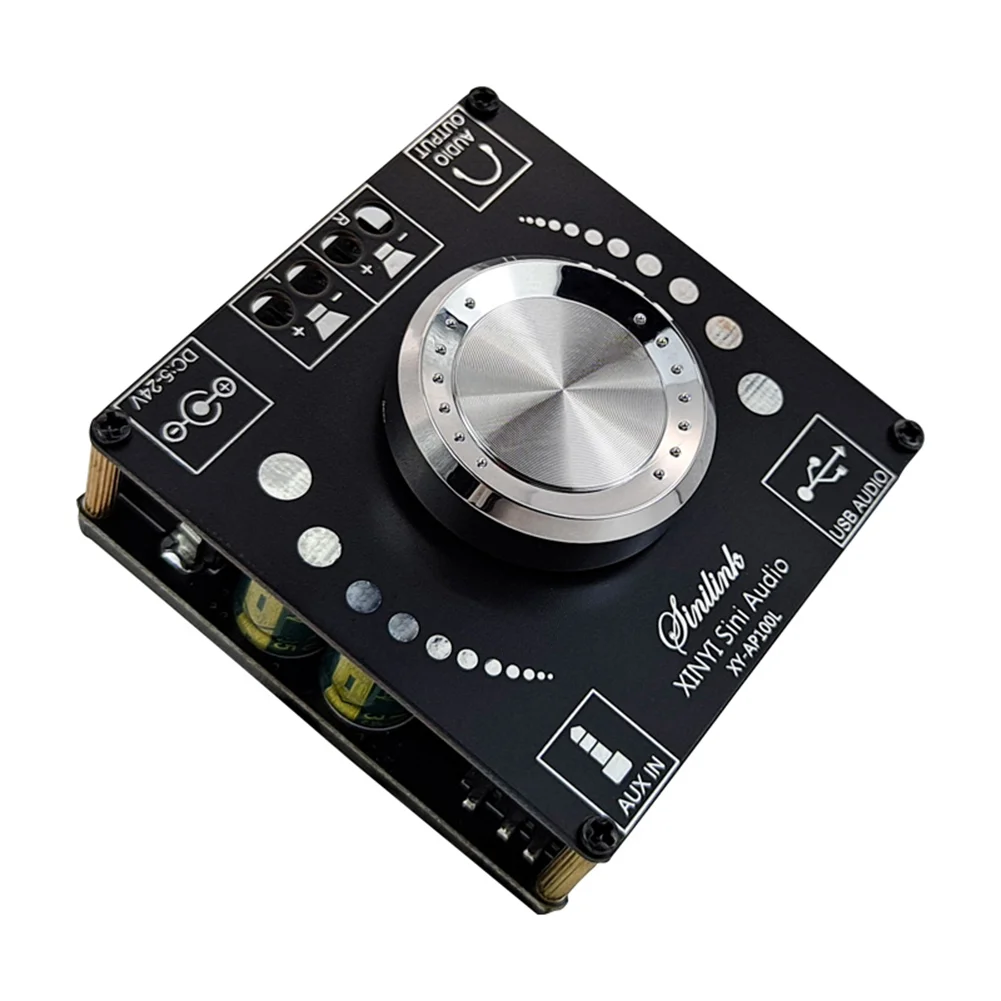

XY-AP100L 100Wx2 2.0 Channel Amplifier Board Digital APP Control Stereo Audio Module Bluetooth-Compatible Speaker Subwoofer Modulator Set
Feature:
Bluetooth-compatible audio amplifier module 2.0 dual-channel stereo output, maximum output power 2X100W, independent adjustment of high and low
Adopt domestic class-D power amplifier chip scheme, high efficiency, good distortion and anti-squeaking sound, sound quality transparent, strong driving force
The use of high-end audio knob encoder. 360 degree stepless tuning, feel smooth, one button start and stop
The use of special thermal silica gel paste large area heat sink, close to the shell of copper heat dissipation, heat dissipation area doubled, to ensure full power and high performance operation of the product.
Mobile APP control. APP visual operation playback mode supports for Apple/Android (please download for Google Market, search 'Sinilink' to download).
Audio input supported: Bluetooth-compatible 5.0, AUX, USB flash drive, computer USB (USB flash drive file system must be FAT 32, maximum 32GB support)
Audio output supported: active speaker, passive speaker (note: passive speaker and active speaker can only choose one)
Specification:
Model: XY-AP100L
Bluetooth-compatible version: 5.0
Transmission distance: 15m (without shelter)
Number of channels: left and right two-channel (stereo)
Sinilink APP: supports for Android/iOS systems
Power supply voltage: DC: 5~26V(the higher the voltage, the greater the output power)
Audio input: Bluetooth-compatible +AUX+ USB disk +USB sound card
Volume adjustment: encoder 360 degrees stepless tuning
Audio output: passive speaker +3.5mm audio interface
Output power: 100W*2
Output filter: filter free
Protection mechanism: static electricity, overcurrent, short circuit, overheating and other protection
Heat dissipation mode: heat sink + shell
Adapter horn: 20W to 300W 4 Ω 8 Ω
Protection mechanism: power reverse connection protection, short circuit protection, self-recovery overheating protection
12V-8Ω/12W+12W,4Ω/22W+22W
19V-8Ω/28W+28W, 4Ω/greater than 55W+55W
22V-8Ω/37W+37W,4Ω/greater than 72W+72W
24V-8Ω/72W+72W, 4Ω/greater than 100W+100W
Size (with shell) : 58mm*58mm*18mm/2.3X2.3X0.7in
Weight: 68g
Note:
The output power of the power supply should be greater than the output power of the amplifier, otherwise it will affect the sound quality.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:
1 Set x Amplifier Board
