Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: 18650 Battery Holder
Output voltage: 5-8V
3Vx1A output
5Vx2A output

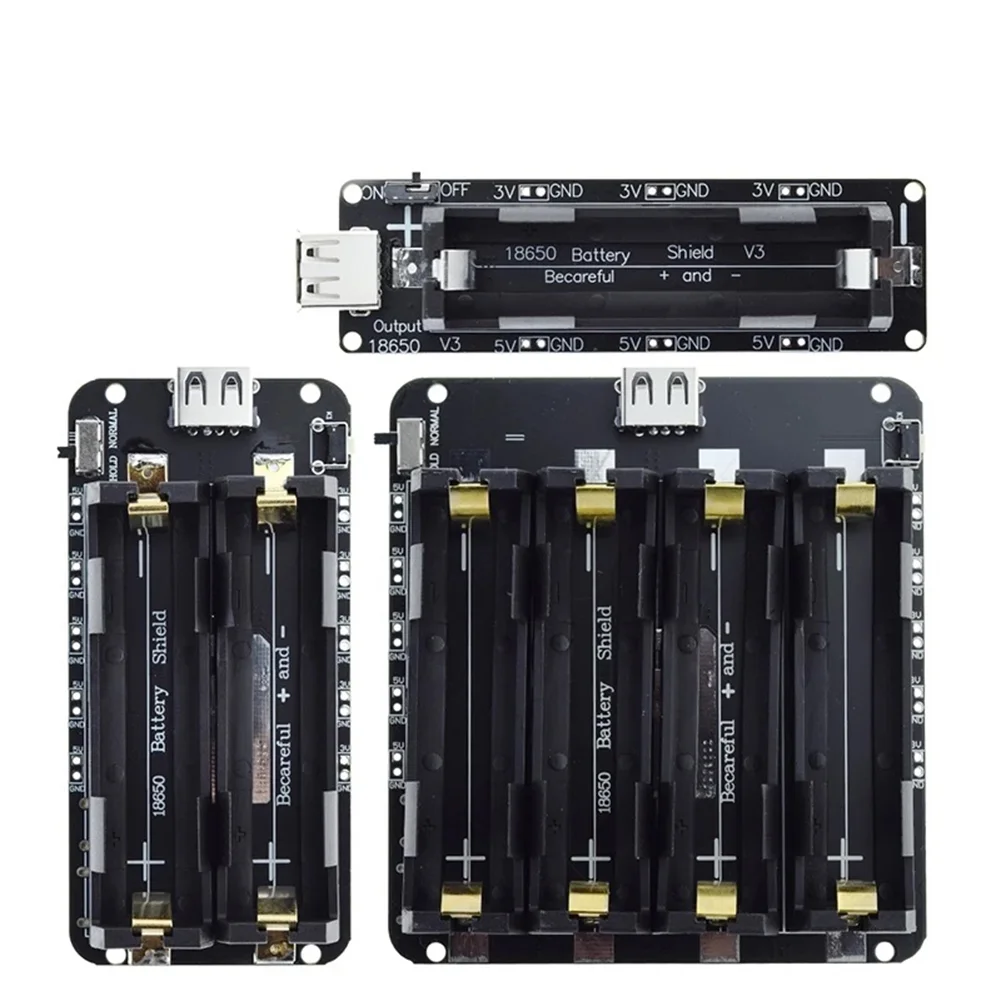

size:
1 way: 99mmx29mmx23mm/3.9x1.14x0.91inch
2-way 100mmx48mmx23mm/0.39x1.89x0.91inch
4-way 100mmx91mmx23mm/3.94x3.58x0.91inch
Features:
1. Battery protection (overcharge or overdischarge)
2. Micro USB port input
3. Type A USB output
4.0.5A current charging
5.1 switch control USB output 5 - 8v input voltage
6.3Vx1A output
7.5Vx2A output
8. LED indication (green means, red means charging)
9.3v output port X3
10.5V output port X3 Be careful with \"+\" and \"x\", you should follow the direction of \"+\" and \"x\" on the PCB.
Now the 18650 battery shield has been updated to V3.
You can use this battery shield to power many products like Raspberry Pi.
In this version 18650 has a protection, the output current can reach 2A.
Notice:
If you put it in the wrong direction, the charging chip will be destroyed.
This product does not include battery 18650.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x 18650 Battery Holder
