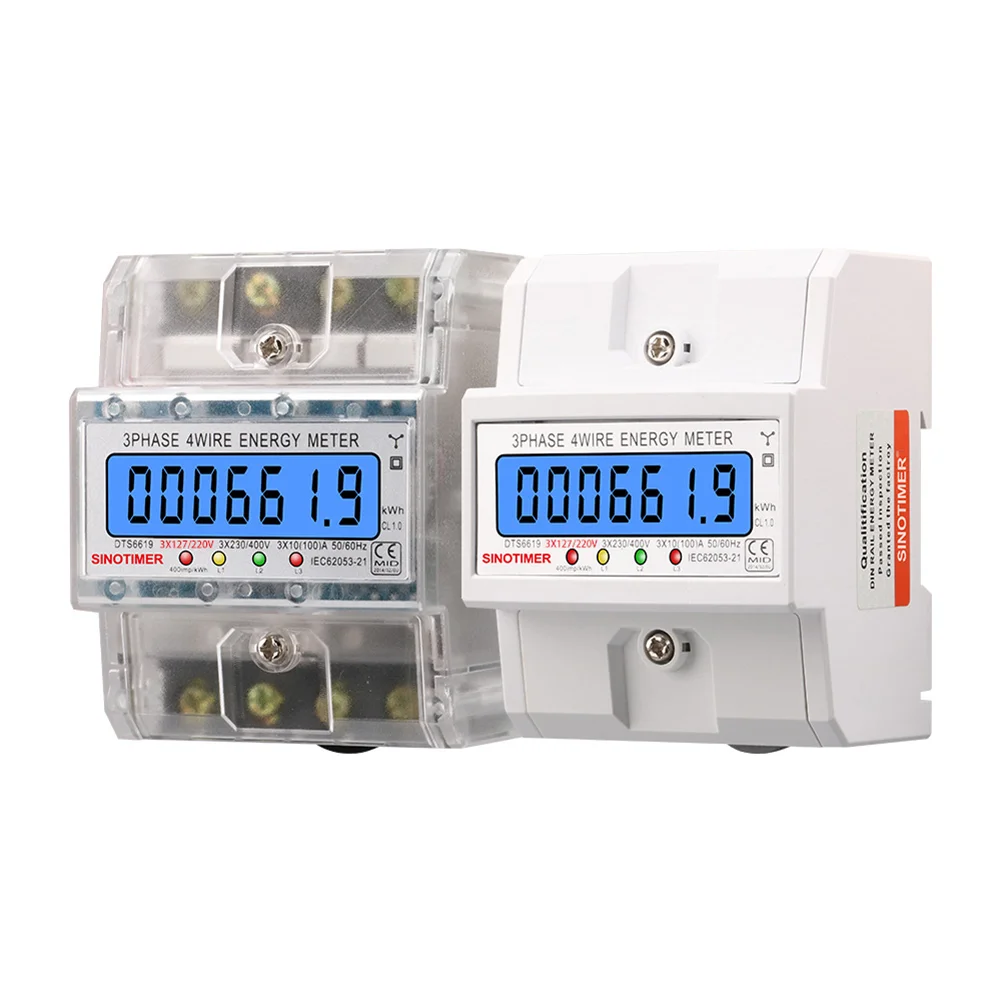

3 Phase 4 Wires Electric Energy Meter 100A Energy Consumption Monitor for Indoor

$46.99

Size

StyleA StyleB

Qty 1000 in stock

Product Description

Specification:
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: LCD
Power Supply: AC
Rated Voltage: 220V
Model Number: Energy Meter
Phase: Three Phase
Reference voltage: 3*127/220V are available
Reference current: 100A
Accuracy class: 1.0
Rated frequency: 50Hz/60Hz
Constant pulse: 400imp/kWh
Display: LCD 6+2
Power consumption: ≤2W, 10VA
Starting current: 0.004Ib
Working temperature: -20~55°C
Storage temperature: 25~70°C
Working voltage: 0.9-1.1 rated voltage
Maximum voltage: 0.8-1.15 rated voltage
Annual average humidity: ≤75%
Type: Three-phase four-wire system electronic
Material: metal+ABS
Size: about 100x76x65mm/3.94x2.99x2.56inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package Content:
1 X Energy Meter Tester
