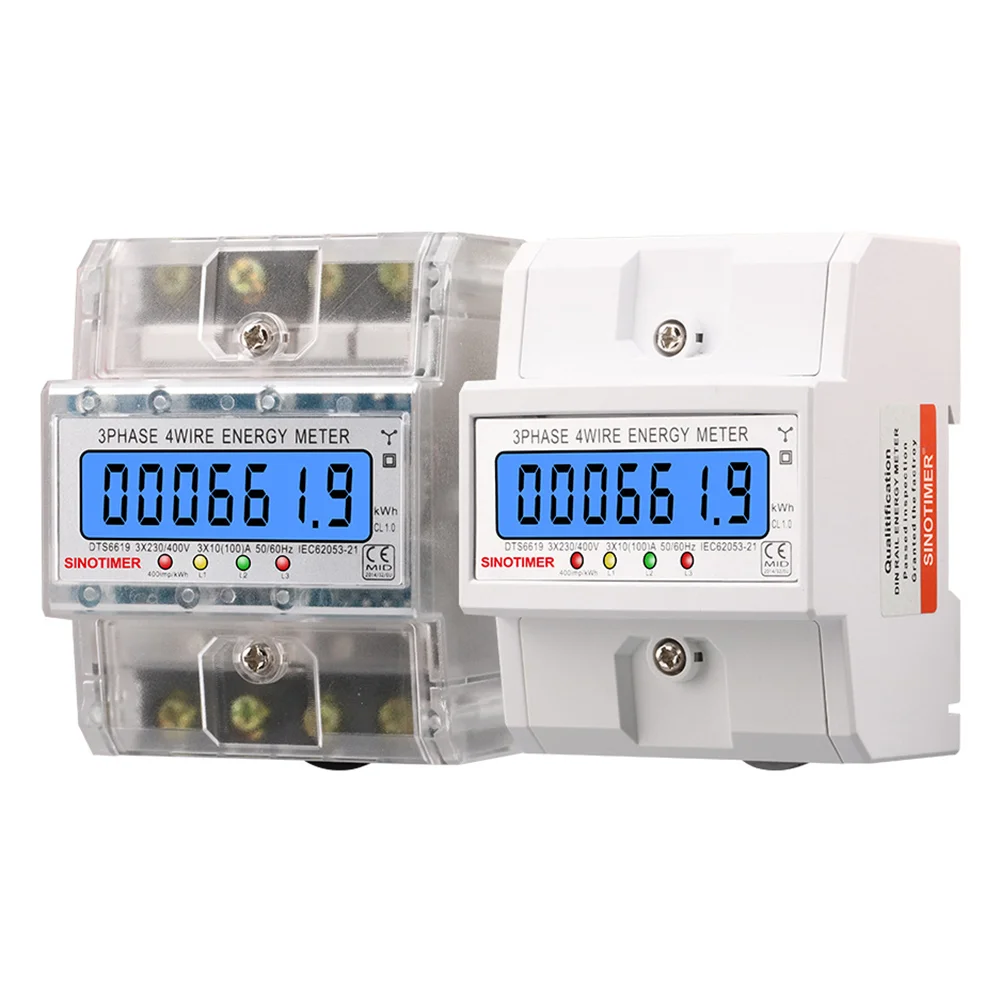

Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: LCD
Power Supply: AC
Rated Voltage: 380V
Max Operating Current: 100A - 119A
Model Number: Energy Meter
Phase: Three Phase
Reference voltage: 3 X 220/380 (V), 3 X 230/400 (V)
Reference current: 3 X 10 (100A)
Accuracy class: 1.0
Rated frequency: 50Hz
Constant pulse: 400imp/kWh
Display: LCD 6+2
Power consumption: ≤2W, 10VA
Starting current: 0.004Ib
Working temperature: -20-55°C
Storage temperature: 25-70°C
Working voltage: 0.9-1.1 rated voltage
Maximum voltage: 0.8-1.15 rated voltage
Annual average humidity: ≤75%
Type: Three-phase four-wire system electronic
Material: metal+ABS
Size: about 100x76x65mm/3.94x2.99x2.56inch
Features:
The meter fully complies with the relevant technical requirements of GB/T17215.321-2008 national standard and IEC62053 international standard first-class or second-class single-phase electric energy meter, and can directly and accurately measure the active energy of energy consumption. It has the characteristics of high reliability, small size, light weight, beautiful appearance, advanced technology, 35mm DIN standard rail installation, etc.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 X Energy Meter Tester
