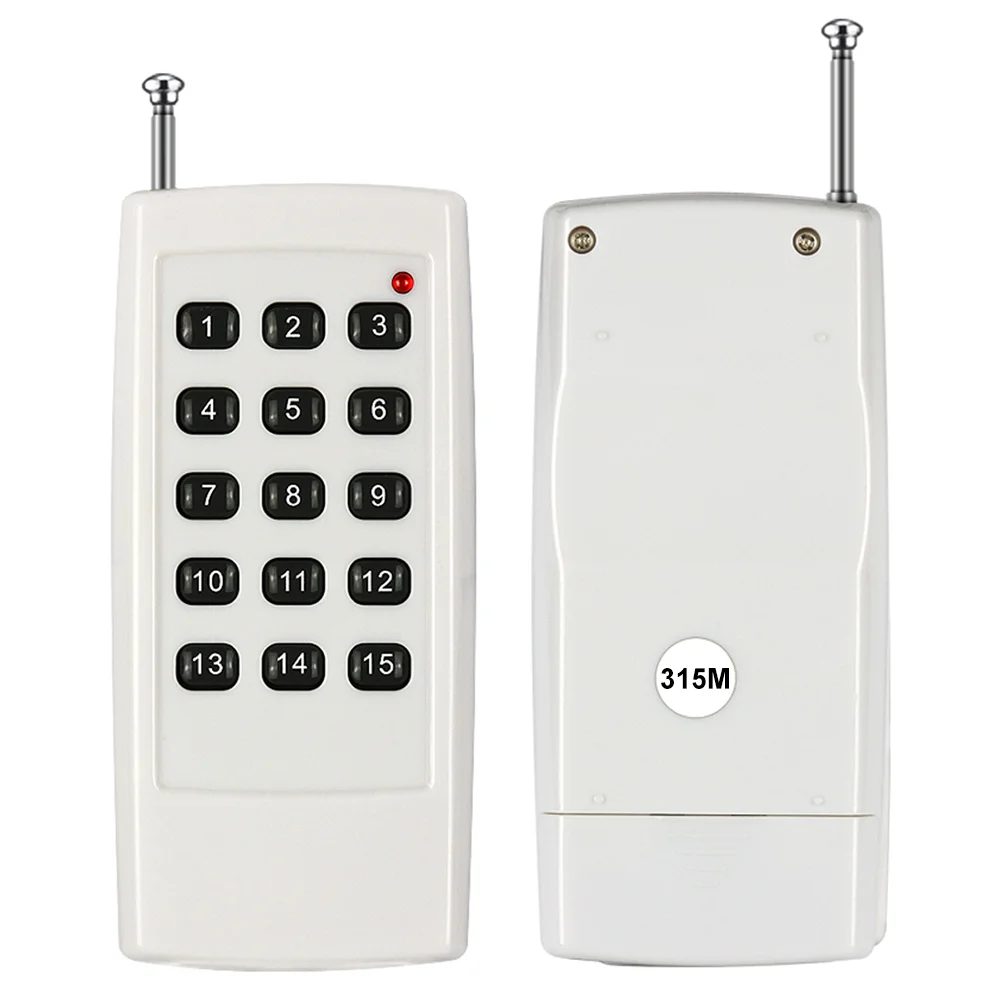

315/433MHz Learning Code Transmitter 1527Code Remote Control Switch Wireless Key

Specification:
Certification: NONE
Origin: Mainland China
Use: Electric Door
Wireless Communication: RF
Model Number: RF Wireless Remote Controller
Channel: 15
Overview:
The new small 15-key remote control (AK1000-15TX) adopts EV1527 coding format, EV1527 coding format has 20-bit pre-burning 1 million internal code combinations, which makes the re-code rate very low and has higher security. The product has good remote control distance and ultra-low power consumption, which can be used in the field of lighting control and smart home remote control.
Operating frequency(optional): 315/433.92MHz
Battery type: 12V, 23A alkaline battery *1
Modulation mode: ASK
Coding format: EV1527
Shell material: ABS
Product size: 104x46.5x15.8mm/4.09x1.83x0.62inch (including shell)
Product net weight: 32g (including shell, including battery)
Operating voltage: DC12V
Static current: 0.1uA
Transmit current: 39mA
Transmit power: +15-18dBm
Operating Temperature: -20-70°C
Cautions:
(1) Battery voltage should not exceed the working voltage.
(1) The battery voltage cannot exceed the working voltage by 2V.
(2) The transmitting distance may be reduced in the environment with high wireless interference.
(3) Keep it out of reach of children.
(4) Prohibit the use in a humid environment, otherwise it may cause damage to the remote control.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.


Package Content:
1 x RF Wireless Remote Controller
