Specification:
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: Digital display
Model Number: Multimeter
Is Smart Device: no
parameter:
Functionality Range Resolution Accuracy
AC voltage 200mV-750V 0.1mV-1V ±(1.5%+5d)
DC voltage 200mV-1000V 0.1mV-1V ±(1.5%+10d)
AC current 200uA-10A 0.1uA-10mA ±(2.5%+10d)
DC current 200uA-10A 0.1uA-10mA ±(2.0%+10d)
Resistance 200MΩ 0.1Ω-100kΩ ±(5.0%+10d)
Capacitor 20mF 0.01nF-10uF ±(6.0%+20d)
Hz frequency 2kHz 0.1Hz-1Hz ±(1.5%+8d)
Screen backlight: yes
data retention: yes
Automatic power off: yes
Low battery indicator: yes
Diode: yes
hFE transistor: yes
Buzzer: yes
NCV voltage: yes
BAT battery: 1.5V/3V/9V/12V battery detection
Battery: AAA battery*2 (not included, you need to bring your own battery)
Maximum count: 1999 counts
Material: ABS
Size: about 188x91x38mm/7.4x3.58x1.5inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:

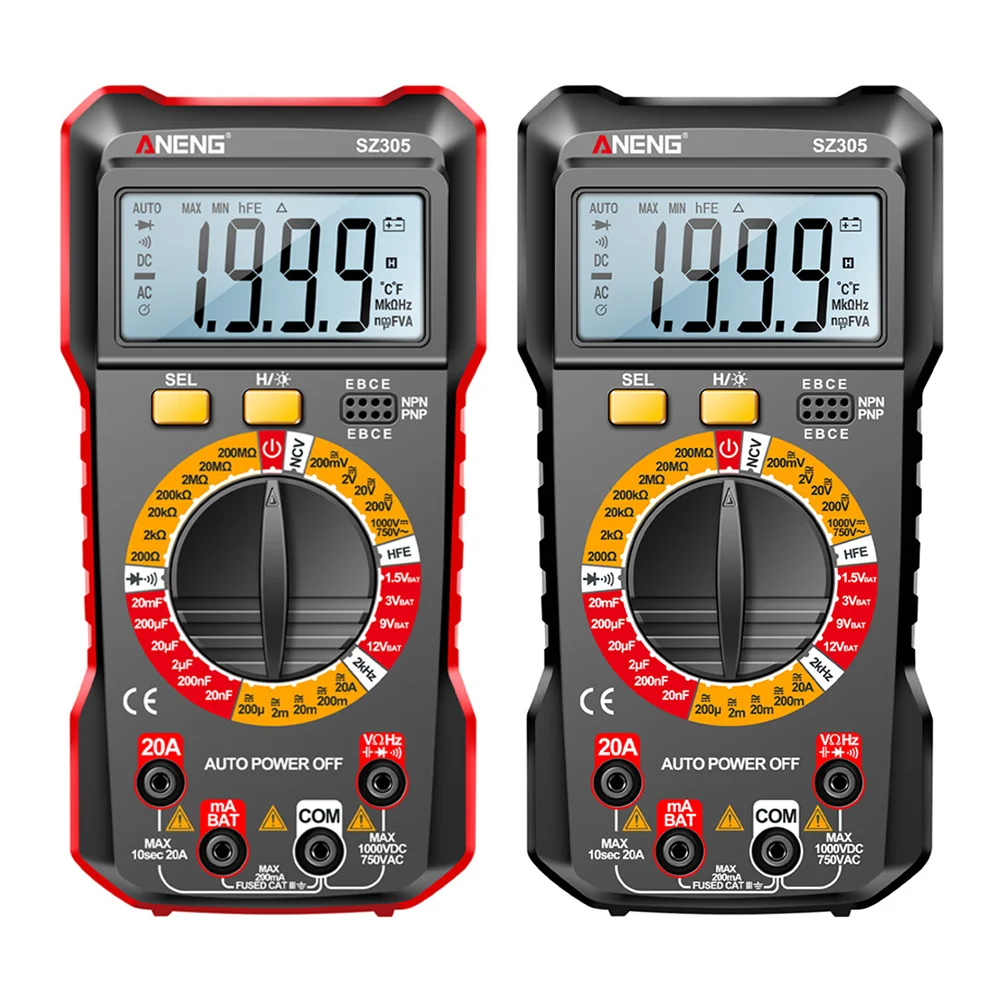

1 X Digital Multimeter
2 X Test Leads
1 X Instruction Manual
