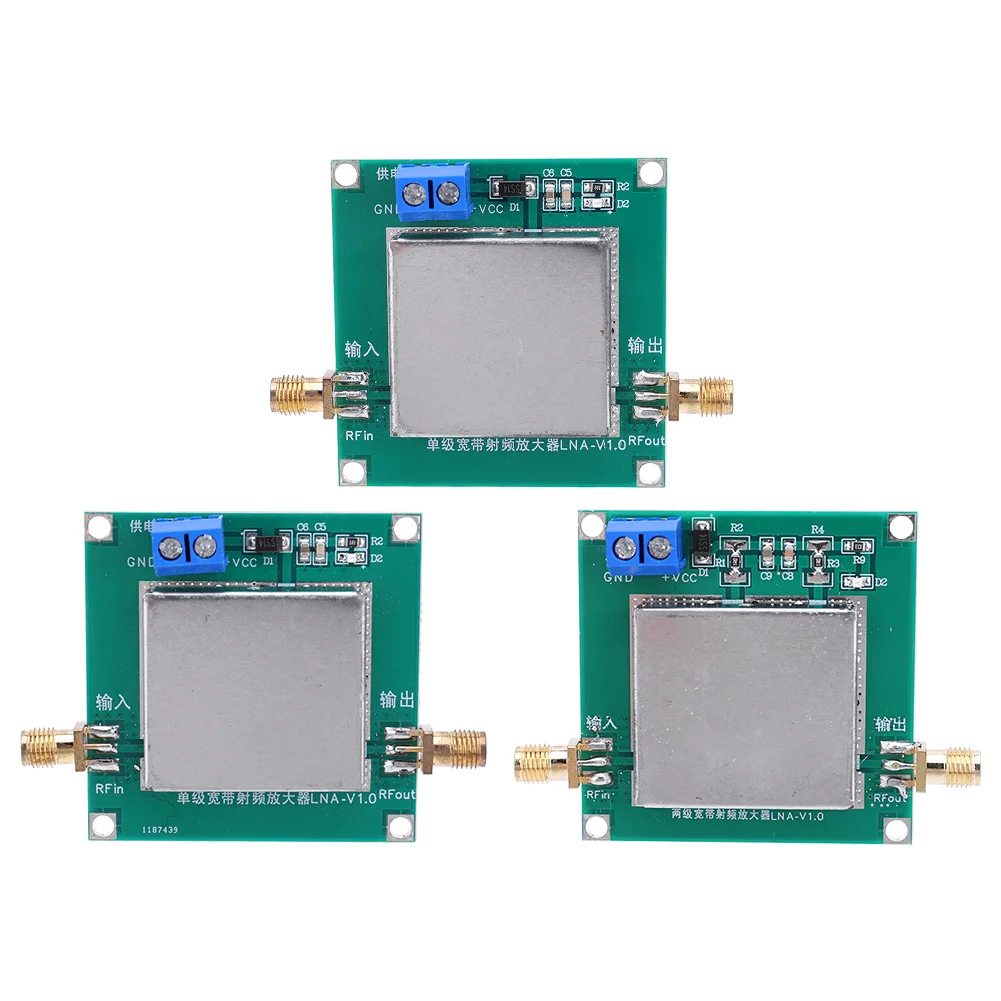

Broadband RF Amplifier Module Low Noise Broadband RF Signal Amplifier UHF HF VHF

978087.01

$19.99
Style - 20dB
Qty 1000 in stock
Specification:
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: Analog Only
Model Number: 4000156085794
Size: 70 x 50 x 12mm/2.8 x 2.0 x 0.5inch
Type(optional): 20/32/64dB
1-3000MHz 2.4GHz 20dB:
Supply voltage: DC 12V (current 75mA) with shield
Input and output impedance: 50 ohms
Maximum output power: 19.5dBm (2VPP \\ 50Ohm load)
Input signal: ≤0 DBM (>0 DBM input, output signal has been distorted.)
Bandwidth: 1MHZ~3GHZ (different frequency gain, refer to S21 index curve)
Noise factor: 2dB (1.5GHz case measurement)
With metal case shielding.
Others: Supply voltage can be reduced whenever a different gain value is required.
Noise figure:
F=15.2MHZ Gain=17.99DB
F=345.2MHZ Gain=19.55DB
F=945.2MHZ Gain=18.09DB
F=1.500GHZ Gain=16.16DB
F=1.955GHZ Gain=15.77DB
F=2.295 GHZ Gain=14.11DB
F=2.610 GHZ Gain=13.60DB
F=2.895 MHZ Gain=12.56DB
Colour: Green
0.01-2000MHz 2Ghz 32dB:
Supply voltage: 12V DC (current 35MA) with shield case
Gain: 32DB Input and output impedance: 50 Ohm
Maximum output power: 10dBm (2VPP \\ 50 Ohm load)
Input signal: <=-22DBM (output signal is already distorted when input is greater than -22dBm)
Bandwidth: 1MHz to 2GHz (different gain at different frequencies, please refer to S21 curve indicator)
Noise factor: 2dB (measured at 0.5GHz)
Others: Different gain values required, supply voltage can be reduced, or customised.
0.1-2GHz 64dB:
Supply voltage: 12V direct connection (70MA current) Shield
Gain: 64DB Input and output impedance: 50 Ohm
Maximum output power: 10dBm (2VPP at 50 Ohm load)
Input signal: <=-54DBM (greater than DBm -54 input and output signals have been distorted)
Bandwidth, bandwidth: 1MHz reach (2GHz different frequency gain varies, please refer to the S21 curve indicator for details)
Noise factor: 2dB (measured at 0.5GHz)
Other: need different gain value, can reduce the supply voltage
Point frequency gain: GAIN=63.41 dB F=30.29MHZ
Gain=66.43 dB F=310.2MHZ
Gain=64.54dB F=620.2MHZ
Gain=55.59 dB F=1.210GHZ
Gain=48.18 dB F=1.590GHZ
Gain=38.44 dB F=1.810GHZ
Gain=39.58 dB F=2.000GHZ

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



Package Content:
1 x Broadband RF Amplifier Module
