Specification:
Certification: CE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: Digital display
Dimensions: 88 x 58 x 188mm

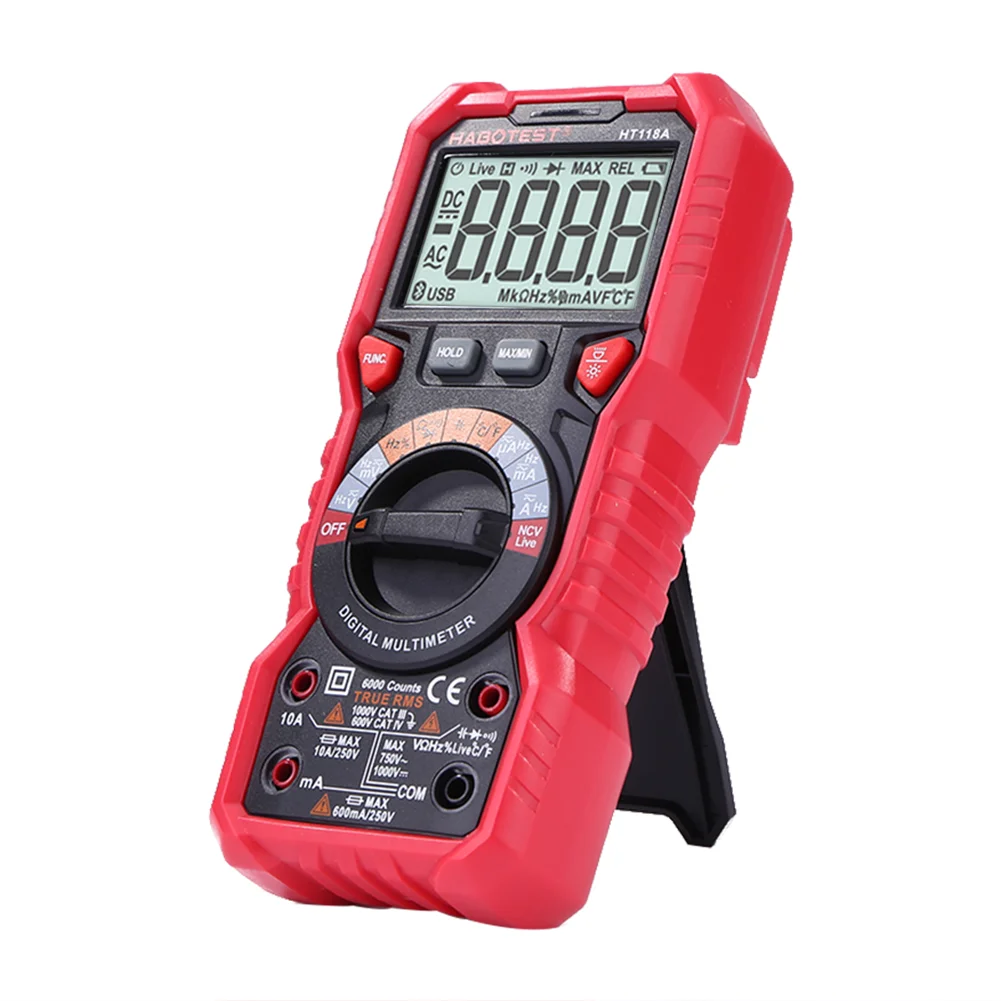

Model Number: Smart Digital Multimeter
Material: ABS
Display: 6000 counts
Range: Automatic Range
Display: LCD
Bandwidth: 1kHz
Safety level: EN61010-1, -2-030 EN61010-2-033, EN61326-1 CATIII 1000V, CATIV 600V
DC voltage: 60mV/600mV/6V/60V/600V/1000V
AC voltage: 60mV/600mV/6V/60V/600V/750V
DC current: 600uA/6000uA/60mA/600mA/6A/10A
AC current: 600uA/6000uA/60mA/600mA/6A/10A
Resistance: 600 Ω/6k Ω/60k Ω/600k Ω/6M Ω/60M Ω
Capacitance: 10nF/100nF/1 μ F/10 μ F/100 μ F/ 1mF / 10mF / 100mF
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Load: 1-99%
Temperature: -40~1000 ° C/-40~1832 ° F
Power supply: 2 * AA battery (not included, self provided)
Screen size: 59 x36mm/2.32 x 1.42in
Project size: 88 x58x 188mm/3.47 x 2.28 x 7.40in
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Package Content:1 x Multimeter
1 x A Pair of Pens
1 x Test Line
